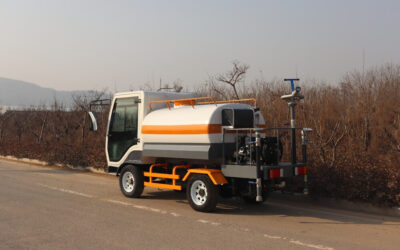

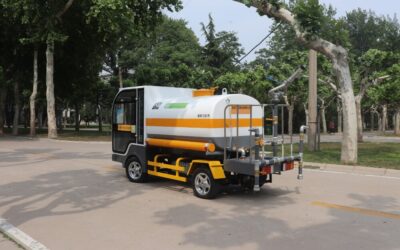

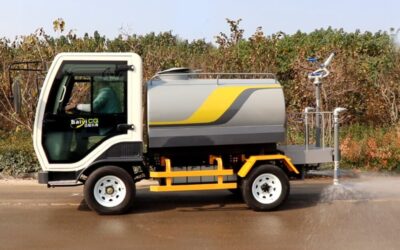

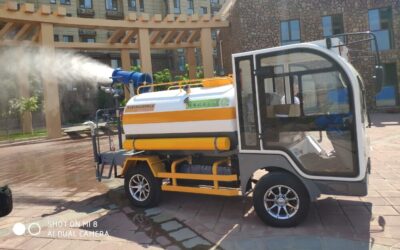

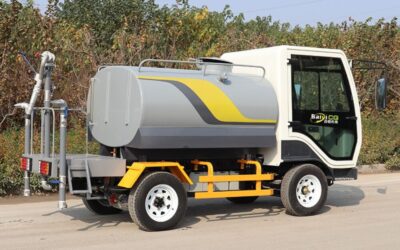

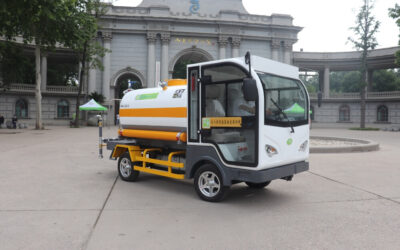

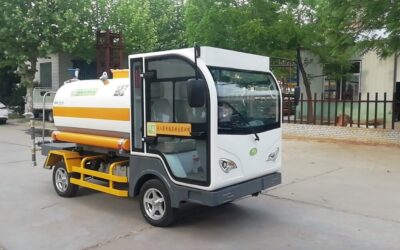

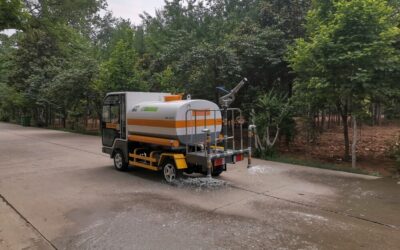

Electric Four-Wheel Sprinkler BY-X20
Introducing a groundbreaking product, the Electric Sprinkler Truck, developed to serve the needs of properties, gardens, factories, universities, construction sites, and beyond. This vehicle operates solely on battery power, delivering an economical, environmentally friendly, and aesthetically pleasing solution.

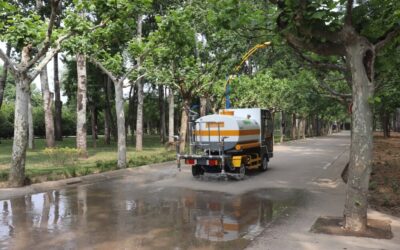

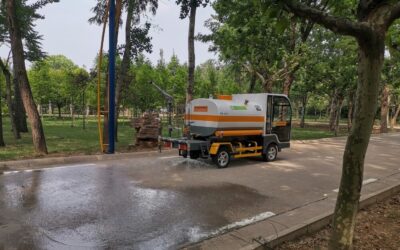

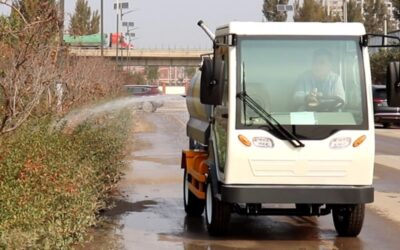

Its primary functions encompass road watering, dust suppression, green space irrigation, and emergency firefighting. This vehicle is distinguished by its effortless mobility, extensive capabilities, and generous cargo capacity.
Water Tank Capacity
2000L
Antiaircraft Gun Lift
15M
Recharge Mileage
60-80KM
Applicable Working Conditions:
Experience The Future Of Mobility With Greenland Motors.
Reach Out Today For Unparalleled Insights And Service.

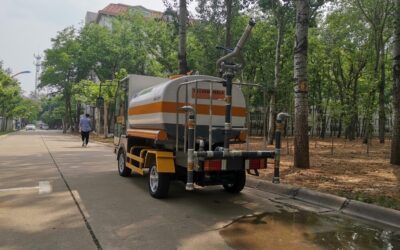

Electric Four-Wheel Sprinkler BY-X20
Features
Overview
Introducing the electric sprinkler truck, a cutting-edge product tailored for properties, gardens, factories, universities, construction sites, and other diverse locations. This vehicle operates solely on battery power, providing cost-efficiency, eco-friendliness, and an attractive appearance. Its primary functions encompass road watering and dust control, green space irrigation, and emergency firefighting. With features such as effortless mobility, versatile capabilities, and a substantial load capacity, this vehicle is well-suited for a multitude of applications.
Vehicle Chassis
The chassis features a robust construction, utilizing large-section No. 12 channel steel as the primary longitudinal beam, securely connected by seamless steel pipe cross beams. This design ensures excellent load-bearing capabilities, reliable strength, and resistance to torsion. Its modular structure allows for universal interchangeability of spare parts, enhancing safety and dependability.
Both the front and rear axles, along with their brakes, are integrated axle systems. The rear axle adopts a fully floating design, providing a high level of safety. Equipped with front and rear hydraulic brakes, which are widened for added stability and safety.

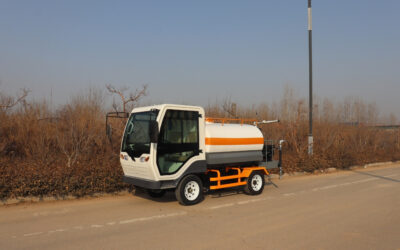

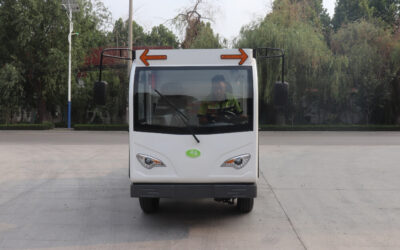

The cab is crafted from high-quality carbon structural steel for its primary bending section and molding tools, employing a comprehensive process that includes sheet metal manipulation, cold bending, molding, and welding. The sliding glass door not only presents an attractive appearance but also boasts exceptional strength and durability, showcasing a modern and stylish design.
Operating Mode

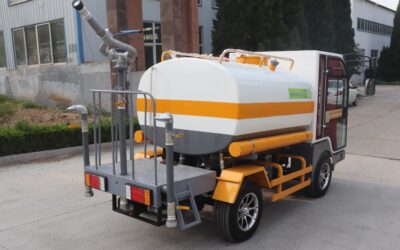

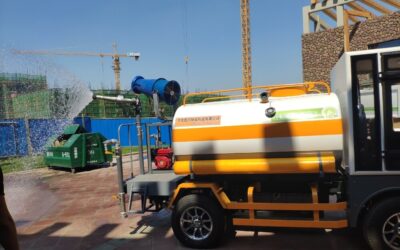

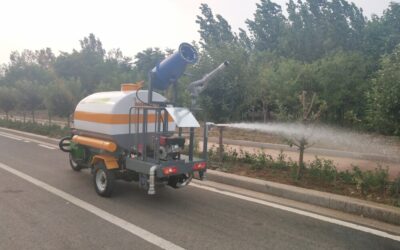

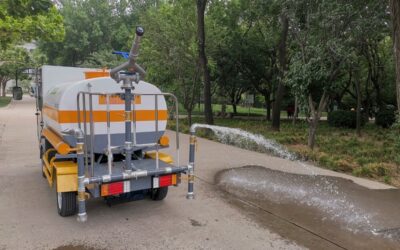

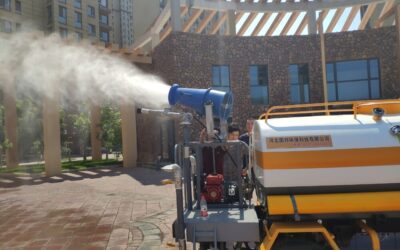

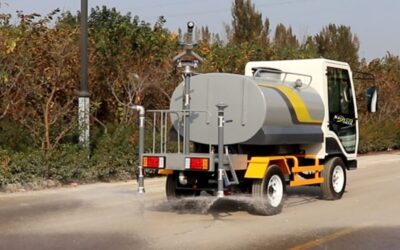

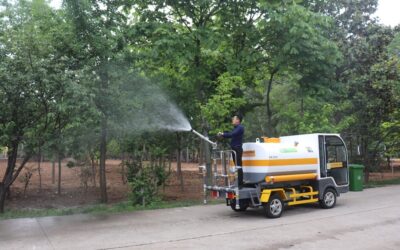

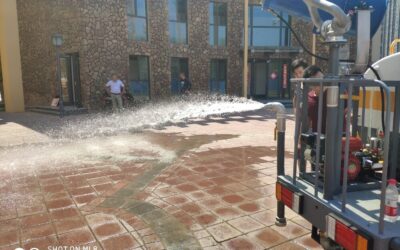

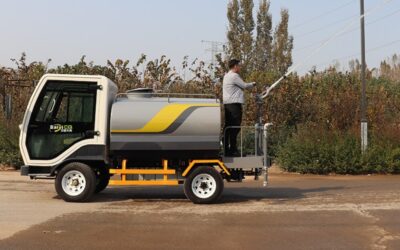

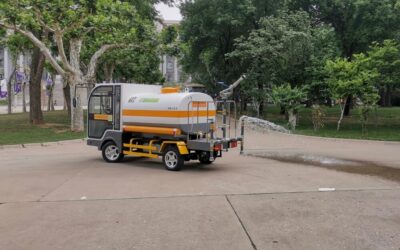

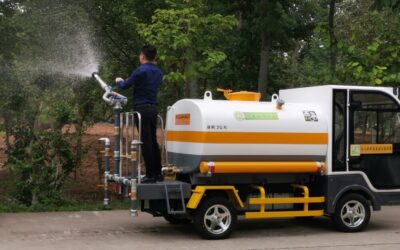

The cab is constructed from top-tier carbon structural steel, utilizing advanced techniques such as sheet metal manipulation, cold bending, molding, and welding for the primary frame and shaping tools. The sliding glass door not only boasts an appealing aesthetic but also demonstrates exceptional strength and durability while maintaining a contemporary and stylish design. This vehicle offers a comprehensive watering solution by incorporating three methods: anti-aircraft cannon, fog cannon, and duckbill shower, catering to the unique requirements of various locations.
Power System
Vehicle Control System: Utilizes single-chip microcomputer control combined with a continuously variable accelerator. This system incorporates vital safety features, including protection against electromagnetic interference, overspeeding prevention, start delay, and reverse deceleration.
The entire vehicle operates solely on electric power, delivering cost-efficiency and environmental friendliness. The battery employed is a maintenance-free variant from reputable brands like Tianneng or Chaowei.
Cabinet Configuration

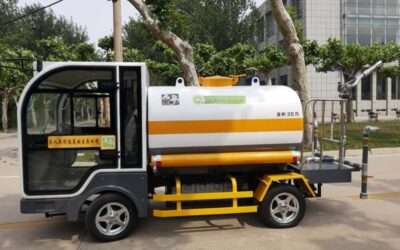

This vehicle comes equipped with two 2-cubic-meter water tanks and features a DC brushless self-priming water pump with a power rating of 1 kW. It offers an impressive watering range of 5-6 meters, while the anti-aircraft gun spray can reach distances of up to 10 meters.
Optional

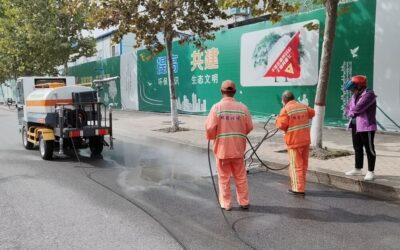

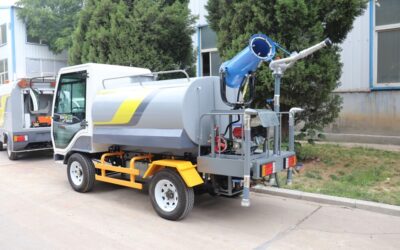

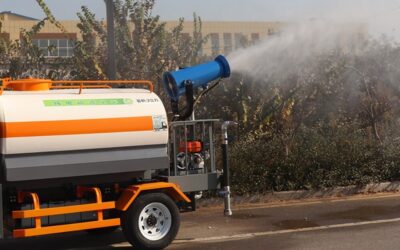

Customers have the option to customize their vehicles with high-pressure washing devices, fog cannons, or anti-aircraft guns to meet their specific requirements.
Technical Parameters
| Items | Units | Parameters | ||
| Vehicle Overall Parameters | Curb Weight | kg | ||
| Gross Vehicle Weight | kg | |||
| Payload | kg | 2000 | ||
| Dimensions (l x w x h) | mm | 4200*1500*2100mm | ||
| Wheelbase | mm | 2000 | ||
| Wheel Tread | Front | mm | 1250 | |
| Rear | mm | 1250 | ||
| Length Suspension | Front | mm | ||
| Rear | mm | |||
| Min. Ground Clearance | 220 | |||
| Working Parameters | Water Tank | Material | Stainless Steel and Anti-Corrosion on Both Sides | |
| Volume | m³ | 2 | ||
| Duckbill Fan Area | m² | 5 | ||
| Water Cannon Range | m | 10 | ||
| Pump Diameter | mm | 50 | ||
| Sprinkler Pump Power | Kw | 1.5 | ||
| sprinkler Width | m | 7-8 | ||
| Fog Cannon Range | m | 15-20 | ||
| Travelling Parameters | Cruising Mileage | m | 80 | |
| Max. Speed (No Load) | km/h | 35 | ||
| Max. Climbing Angle | % | 15 | ||
| Braking Distance | m | ≤5.5 | ||
| Min. Turning Diameter | m | 4 | ||
| Chassis | Number of Passengers | 2 | ||
| Chassis | Manganese Steel Cold Riveted Splicing Light Truck Chassis | |||
| Drive Motor Power | Kw | 7.5 | ||
| Power Supply | v | 72 | ||
| Controller | V/A | |||
| Speed Control | Continuously Variable Transmission | |||
| Battery | Type | Tianneng Lead-Acid Maintenance-Free Battery (optional Lithium Battery) | ||
| Volume | AH | 200 | ||
| Charging Time | h | 6-8h | ||
| Traveling Parameters | 5 Hole Full Floating Load Bridge | |||
| Tyre | 185R14C | |||
| Braking Method | Hydraulic Drum Brake + Vacuum Pump Auxiliary Brake | |||
| Body Parameters | Body | Sheet Metal Electrophoretic Spraying Process | ||
| Air Conditioner | Optional Heating and Cooling Air Conditioner, 360-Degree Adjustable Wind Direction | |||
| Driver Cabin | Fully Enclosed Cab; Front Windshield Is Tempered Glass | |||
| Seat | Waterproof Leather Sponge Seat | |||
| Camera | Color Reversing Image | |||
| Water Level Observation | Yes | |||
| Water Level Alarm | Yes | |||
| Optional Pure Electric High Voltage System | High Pressure Washing Power | Kw | 3 | |
| Washing Pressure | Mpa | 18 | ||
| Water Flow | L/min | 15 | ||
| Hose Roller Length | m | 15 | ||
| High-Pressure Pump Brand | High-Pressure Washing Method | |||
| Optional Gasoline Engine High Pressure System | Engine Power | 13.5HP | ||
| Optional Gasoline Engine High-Pressure System | Briggs & Stratton Engine | |||
| High-Pressure Washing Method | Italy AR | |||
| Flow | 15L/min | |||
| Optional Heating and Cooling Air Conditioner, 360-degree Adjustable Wind Direction | Left and Right High-Pressure Washing, High-Pressure Gun Washing | |||
