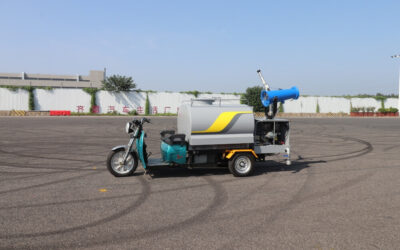

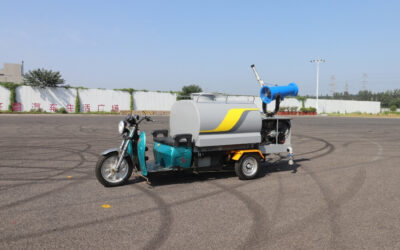

Electric Tricycle Sprinkler BY-X15

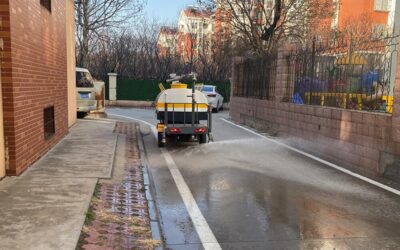

Introducing state-of-the-art innovation: the electric sprinkler truck. This eco-friendly vehicle, powered solely by batteries, is tailored for diverse settings such as properties, gardens, factories, universities, and construction sites. It excels in cost-efficient road watering, dust suppression, greenery maintenance, and rapid emergency firefighting.
With its exceptional versatility, mobility, and ample capacity, this vehicle proves ideal for tasks like road watering, dust control, greening initiatives, and swift fire response. Its applicability extends across a wide spectrum of environments, including properties, gardens, factories, universities, and construction sites.
Water Tank Capacity
1500L
Antiaircraft Gun Lift
15M
Recharge Mileage
60-80KM
Applicable Working Conditions:
Experience The Future Of Mobility With Greenland Motors.
Reach Out Today For Unparalleled Insights And Service.
Electric Tricycle Sprinkler BY-X15
Features
Overview
Introducing a cutting-edge product: the electric sprinkler truck, developed for use in properties, gardens, factories, universities, construction sites, and more. This vehicle operates solely on battery power, offering cost-efficiency, eco-friendliness, and an appealing design. Its primary functions encompass road watering, dust suppression, greenery maintenance, and emergency firefighting.
This versatile vehicle offers ease of mobility, a comprehensive feature set, and substantial carrying capacity, making it an ideal choice for tasks like road watering, dust control, greening projects, and swift response to fires. Its applicability extends across a wide range of settings, including properties, gardens, factories, universities, and construction sites.
Vehicle Chassis
This vehicle is built upon a robust electric three-wheel chassis, designed for heavy-duty use. Its frame features an integrated curved beam structure, ensuring sturdiness and stability on a wide range of challenging road surfaces.
Operating Mode

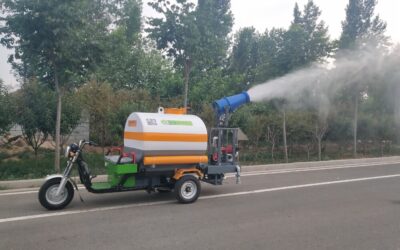

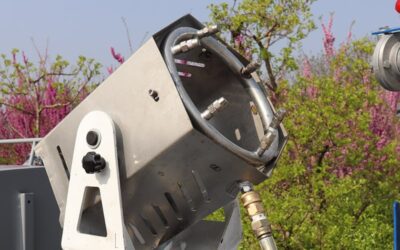

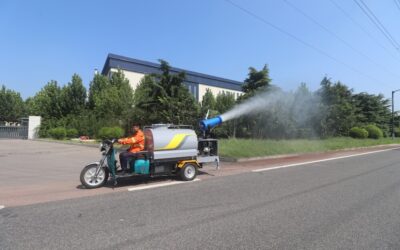

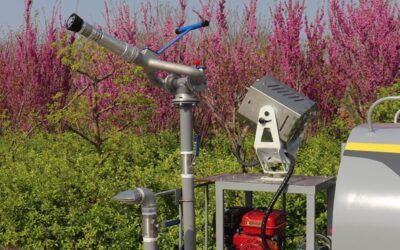

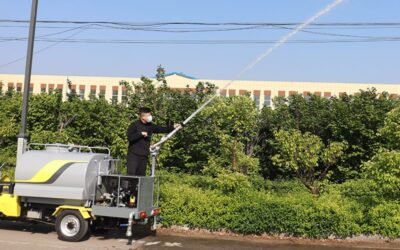

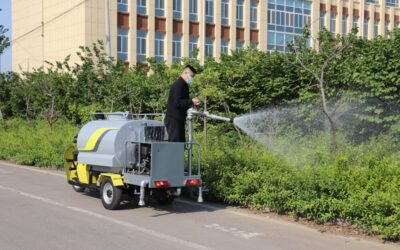

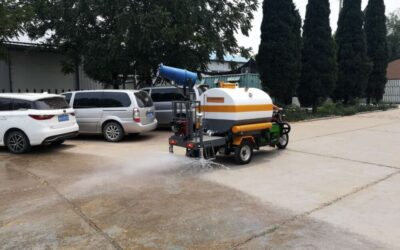

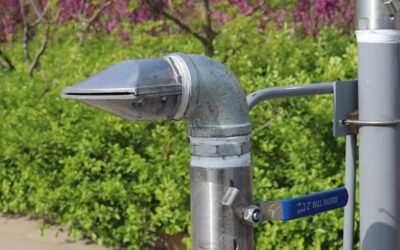

This versatile vehicle combines three distinct watering methods: the anti-aircraft cannon, fog cannon, and duckbill shower, catering to the specific requirements of various locations. Additionally, it offers an optional high-pressure flushing feature, featuring a top-of-the-line Italian AR high-pressure water pump capable of achieving a maximum pressure of 280 kg. This allows for rapid cleaning of sidewalks, auxiliary roads, curbstones, small advertisements, trash cans, and more. In essence, this single vehicle serves multiple purposes.
Power System
The vehicle features a high and low gear system, enhancing its capability to navigate slopes with ease.
As for the front and rear axles and brakes, both utilize integrated axle structures, with the rear axle employing a fully floating design that ensures exceptional safety. The hydraulic brakes, which have been widened, provide outstanding stability and safety.
The entire vehicle is entirely electric, delivering economic and eco-friendly advantages. It is powered by Tianneng or Chaowei 45AH dry maintenance-free batteries, known for their robust endurance.
Cabinet Configuration
This vehicle boasts a 1.5 cubic meter water tank, complemented by a high-powered 1 kW DC brushless self-priming water pump. It achieves an impressive water sprinkling range of 5-6 meters, while the anti-aircraft gun spraying distance extends up to 10 meters.
Optional
This vehicle offers optional features, including fog cannons and high-pressure washing devices. It comes equipped with an imported Italian AR high-pressure water pump, boasting a remarkable maximum pressure of 280 kg. This capability enables rapid cleaning of sidewalks, auxiliary roads, curbstones, small advertisements, trash cans, and more, exemplifying the multifunctionality of this vehicle.
Technical Parameters
| Items | Units | Parameters | ||
| Vehicle Overall Parameters | Payload | kg | 1500 | |
| Dimensions (L x W x H) | mm | 3750*1400*2100 | ||
| Wheelbase | mm | 2200 | ||
| Wheel Tread | Rear | mm | 1100 | |
| Minimum Ground Clearance | mm | 200 | ||
| Working Parameters | Water Tank | Material | Stainless Steel and Anti-Corrosion on Both Sides | |
| Volume | m³ | 1.5 | ||
| Duckbill Fan Area | m² | 5 | ||
| Water Cannon Range | m | 15 | ||
| Pump Diameter | mm | 50 | ||
| Sprinkler Pump Power | Kw | 1.5 | ||
| Sprinkler Width | m | 7-8 | ||
| Fog Cannon Range | m | 15 | ||
| Travelling Parameters | Cruising Mileage | m | 60-80 | |
| Max. speed (No Load) | km/h | 30 | ||
| Max. Climbing Angle | % | 15 | ||
| Braking Distance | m | ≤5.5 | ||
| Min. Turning Diameter | m | 6 | ||
| Chassis | Number of Passengers | 1 | ||
| Chassis | Futian Five Star | |||
| Drive Motor Power | Kw | 1.5 | ||
| Power Supply | v | 60 | ||
| Speed Control | Continuously Variable Transmission | |||
| Battery | Type | Tianneng Lead-Acid Maintenance-Free Battery (optional Lithium Battery) | ||
| Volume | AH | 75 | ||
| Charging Time | h | 6-8 | ||
| Front/rear Axle | 5 Hole Full Floating Load Bridge | |||
| Braking method | Hydraulic Drum Brake | |||
| Tyre specification | Front 3.50-16 Rear 4.50-12 | |||
| Body Parameters | Body | Sheet Metal Electrophoretic Spraying Process | ||
| Seat | Waterproof Leather Sponge Seat | |||
| Camera | Color Reversing Image | |||
| Water Level Observation | yes | |||
| Optional Pure Electric High Voltage System | High Pressure Washing Power | Kw | 3 | |
| Washing Pressure | Mpa | 18 | ||
| Water Flow | L/min | 15 | ||
| Hose Roller Length | m | 15 | ||
| High Pressure Washing Method | Left and Right High-Pressure Washing, High Pressure Gun Washing | |||
| Optional Gasoline Engine High-Pressure System | High-Pressure Washing Method | HP | 13.5 | |
| High-Pressure Pump Brand | Briggs & Stratton Engine | |||
| High-Pressure Washing Method | Italy AR | |||
| Flow | L/min | 15 | ||
| High Pressure Washing Method | Left and Right High-Pressure Washing, High-Pressure Gun Washing | |||
