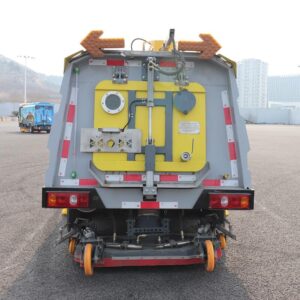

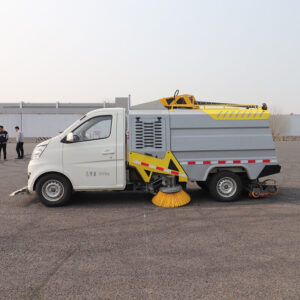

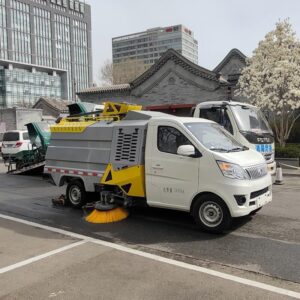

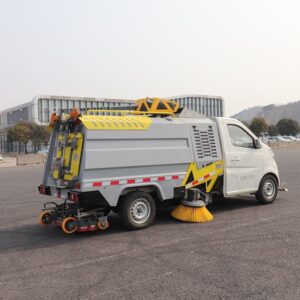

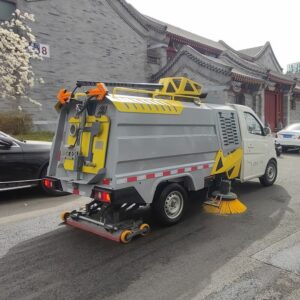

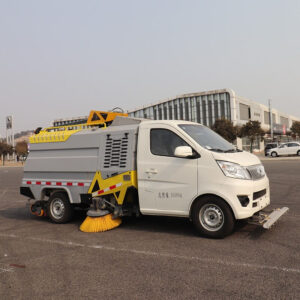

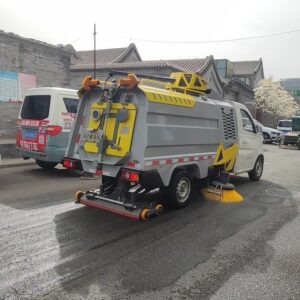

New Energy Sweeper JBY5030TXSBEV
The JBY5030TXSBEV pure electric sweeper is a compact and versatile electric cleaning vehicle equipped with a lithium iron phosphate battery. It is designed for efficient and thorough cleaning in various settings, including non-motorized lanes, narrow streets, airports, universities, parks, and properties. The sweeper offers a range of functions such as road cleaning, deep cleaning, facade cleaning, garbage and sewage recycling, and high-pressure washing.
It features two operating modes (high and low pressure) to optimize battery life and fast-charging capabilities for continuous operation. Unlike traditional sweepers, it performs wet sweeping without the need for filter replacements, resulting in higher cleaning efficiency and a dust-free environment.
Power Source
Pure Electric
Recharge Mileage
60-80KM
Maximum Speed
80KM/H
Applicable Working Conditions:
Experience The Future Of Mobility With Greenland Motors.
Reach Out Today For Unparalleled Insights And Service.
New Energy Sweeper JBY5030TXSBEV
Features
Overview
The JBY5030TXSBEV pure electric sweeper is a compact electric cleaning vehicle designed after thorough market research and the latest upgrades. This innovative sweeper adopts a cleaning mode and is powered by a lithium iron phosphate battery, addressing the limitations of larger sweepers in terms of maneuverability. It’s well-suited for rapid cleaning in non-motorized lanes, narrow streets, alleys, as well as various locations like airports, universities, parks, and properties. The vehicle offers a comprehensive range of functions, including road cleaning, deep road cleaning, curb stone facade cleaning, garbage and sewage recycling, and high-pressure washing.
One of its standout features is the choice between two operating modes: high and low pressure. Users can select the appropriate mode based on the road surface’s cleanliness, effectively extending the battery life. In high-pressure mode, a single tank of clean water can power the sweeper for up to 40 minutes, while low-pressure mode extends this to 70 minutes. Additionally, the vehicle is equipped with independent fast-charging capabilities, allowing it to connect to standard charging stations and reach a full charge in just one hour, enabling continuous operations.
This innovative sweeper represents a shift from dry sweeping to wet sweeping, eliminating the need for filter element replacement. Compared to traditional small road sweepers, it boasts higher cleaning efficiency, superior results, and the added benefit of dust-free operation.
Vehicle Chassis
The vehicle chassis is built on a Changan chassis, utilizing a cold riveting splicing process and electrophoretic paint. It features oversized tires and shock absorbers, making it well-suited for handling high load-bearing situations. Inside the cab, there is the convenience of heating and cooling air conditioning, providing a comfortable environment. The operation buttons are designed for simplicity and ease of use, ensuring safety, energy efficiency, and environmental friendliness as key attributes.
Operating Mode
Utilizing a lithium iron phosphate battery as its power source, this vehicle offers several advantages. It boasts an extended cruising range, making it both cost-effective and environmentally friendly while maintaining low noise levels. In high-pressure mode, a single tank of clean water enables operation for up to 40 minutes, and in low-pressure mode, it can run for an impressive 70 minutes.
Additionally, the vehicle comes equipped with independent fast charging capabilities, allowing it to connect to standard national charging stations and achieve a full charge within just one hour, facilitating continuous round-the-clock operations.
Power System
The vehicle relies entirely on pure electric new energy batteries for its power. With its cleaning mode and lithium iron phosphate batteries, it addresses the challenges faced by larger sweepers when it comes to accessing cleaning areas. This makes it highly suitable for swift cleaning operations in various locations, including non-motorized lanes, narrow streets, alleys, as well as roads in airports, universities, parks, and properties.
Its versatile capabilities encompass a range of functions, such as road cleaning, deep road cleaning, curb stone facade cleaning, garbage and sewage recycling, and high-pressure washing.
Vehicle Configuration
- The water tanks and waste bins of this vehicle are constructed from durable and corrosion-resistant stainless steel.
- The cleaning and sweeping device incorporates automatic obstacle avoidance protection and an automatic reset function upon encountering obstacles.
- For user convenience, the control switches are centrally located within the cab, which also features heating and cooling air conditioning, enabling all electronic control operations to be carried out comfortably.
- During transportation, the vehicle exhibits excellent passability, strong suction capabilities, and highly effective dust suppression.
- The vehicle is entirely electronically controlled and hydraulically operated, featuring a large suction fan that delivers robust cleaning power while maintaining a low overall operating sound level.
- As a purely electric vehicle, it is both economical and environmentally friendly, aligning with national policies promoting new energy vehicles.
- This product combines the advantages of a dedicated chassis structure, a combined cleaning and suction system, a hydraulic dumping system, a “3D” box washing three-in-one, and a 360° all-around high-definition intelligent surveillance camera.
- The high-pressure cleaning system offers adjustable pressure settings, allowing for on-the-fly adjustments based on road surface cleanliness, thereby promoting energy savings.
- Additionally, there is an optional vehicle networking management and control system that enables real-time monitoring of the vehicle’s operating trajectory, operational duration, cleaning effectiveness, power consumption, and more.
Operating Environment
Inside the fully enclosed cab, occupants enjoy the convenience of both heating and cooling air conditioning, and all operational tasks can be efficiently carried out from within the cabin.
Technical Parameters
| Project Name | Units | Parameters |
| Dimension | mm | 5000×1600×2100 |
| Number of Passengers | people | 2 |
| Maximum No-Load Speed | km/h | 80 |
| Climbing Ability | % | 15 |
| Maximum Range | km | ≥100 |
| Wheelbase | mm | 2700 |
| Wheel Pitch | mm | 1372/1300 |
| Minimum Ground Clearance | mm | 170 |
| Battery Capacity | KWH | Lithium Iron Phosphate Battery 41.5 |
| Driving Motor Power | kw | Rated Power 30/ Peak Power 60 |
| Pump Power of Cleaning Machine | Kw | 7.5 |
| Charging Time | h | ≤8 |
| Tank Size | L | 1500 |
| High-Pressure Flush Coil Length | L/min | 30 |
| High Pressure Flush Pressure | Mpa | ≥20 |
| Whether the Water Level Is Observed | m | 15 |
| High-Pressure Flush Flow | / | Esp Electronic Power Steering System |
| Whether There Is a Water Level Alarm | / | Yes |
| Whether Water Level Is Observed | / | Yes |
| Whether the Pressure Is Adjustable | / | Yes |
| Is There Any Astern Video | / | Yes |
