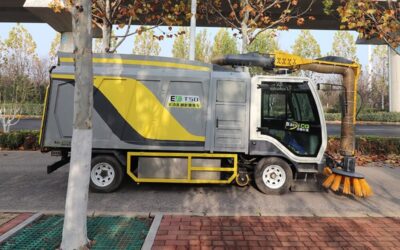

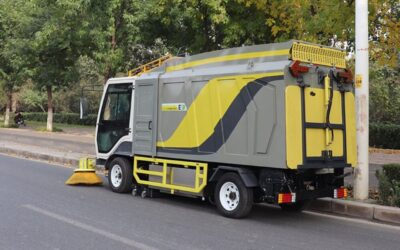

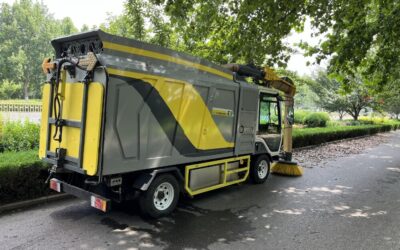

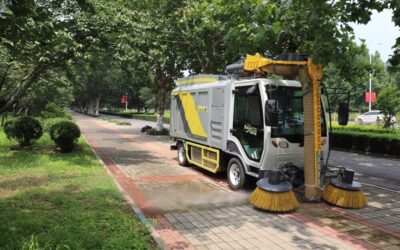

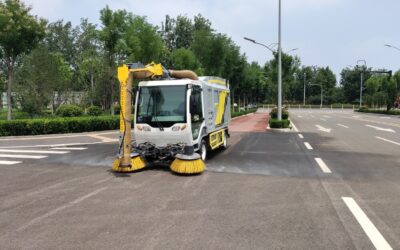

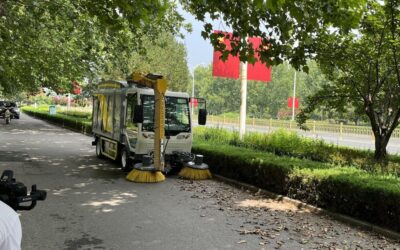

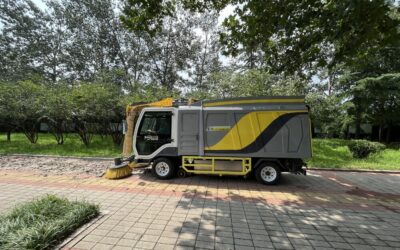

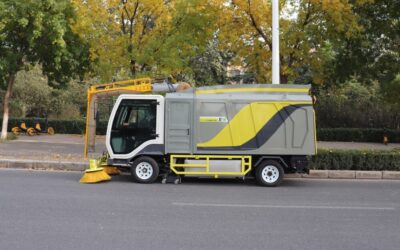

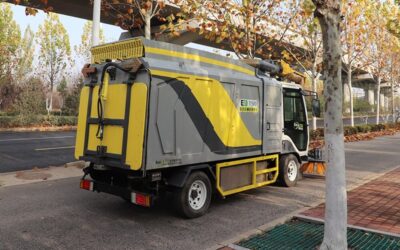

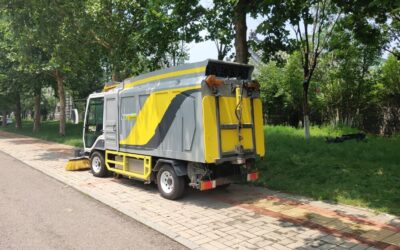

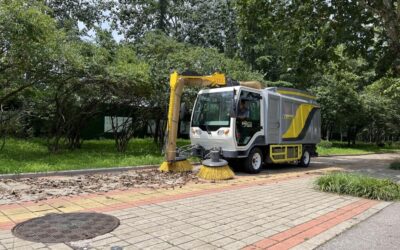

Multifunctional Leaf Collection Vehicle BY-T50
The BY-T50, our latest leaf collection vehicle, is a fourth-generation upgrade designed to tackle the challenges of leaf collection and transportation. Equipped with a 4.5 cubic bin and a two-stage dust removal and filtration system, it efficiently collects leaves without generating dust. Its powerful suction fan quickly gathers leaves while a unique mechanism crushes and compresses them, making storage and transportation more manageable.
Additionally, the vehicle’s high-pressure washing system extends its usability beyond leaf season, allowing it to perform various cleaning tasks. In essence, the BY-T50 is a versatile solution that greatly improves efficiency and resource utilization.
Power Source
Pure Electric
Tank Capacity
4.8m³
Flushing Pressure
20000㎡/h
Applicable Working Conditions:
Experience The Future Of Mobility With Greenland Motors.
Reach Out Today For Unparalleled Insights And Service.
Multifunctional Leaf Collection Vehicle BY-T50
Features
Overview
Introducing a cutting-edge fourth-generation upgrade, the BY-T50 multifunctional leaf collection vehicle, designed to tackle the challenges posed by the abundance of fallen leaves during the autumn season. This innovative vehicle boasts a 4.5 cubic bin and a dual-stage dust removal and filtration system, ensuring both ample storage capacity and a dust-free operation. With the help of a powerful suction fan, it swiftly gathers leaves scattered or piled up.
What sets this vehicle apart is its unique fan mechanism, capable of crushing and compressing fallen leaves, significantly reducing their volume. This breakthrough in leaf management resolves the longstanding issues of storage and transportation, substantially enhancing work efficiency. Furthermore, the BY-T50 comes equipped with a high-pressure washing system, enabling it to transform into a high-pressure cleaning vehicle during non-leaf seasons. This versatile functionality extends its utility to tasks like cleaning curbs, sidewalks, bike lanes, and trash bins. With the BY-T50, you get a multi-purpose solution that maximizes the vehicle’s overall usability.
Vehicle Chassis
The chassis is constructed using substantial-section channel steel for its primary longitudinal beam, seamlessly connected with steel pipe cross beams. This configuration ensures exceptional load-bearing capacity, dependable strength, and resistance to torsion. Moreover, it boasts universally interchangeable spare parts and is equipped with a four-wheel hydraulic brake system featuring vacuum assistance for enhanced safety and reliability.
Operating Mode

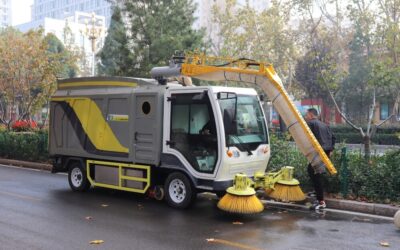

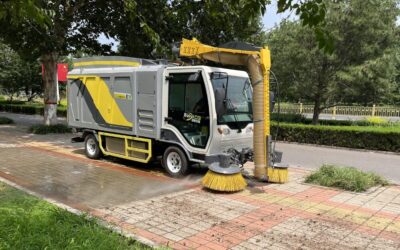

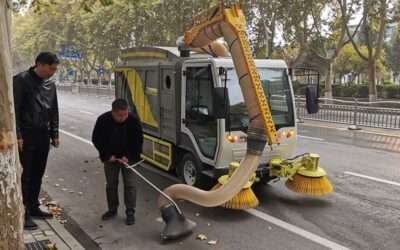

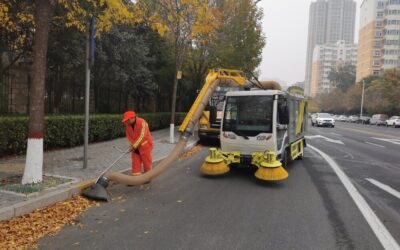

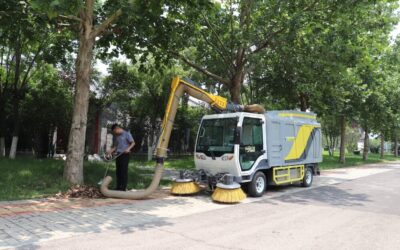

It features two operational modes: a bottom suction cup collection mode and a handheld suction tube for leaf collection.

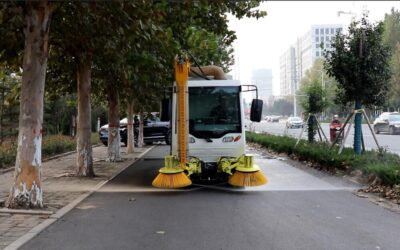

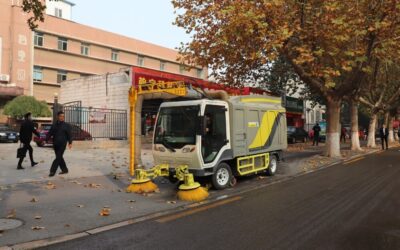

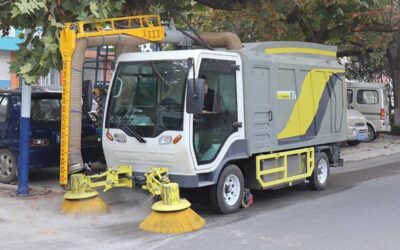

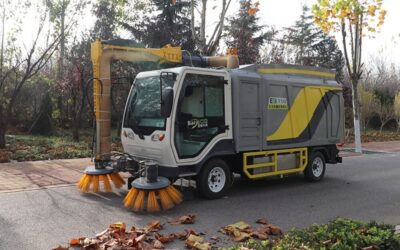

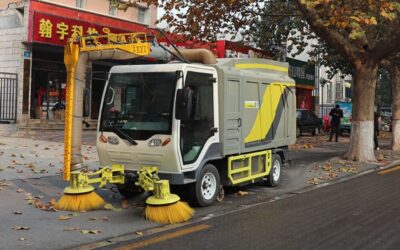

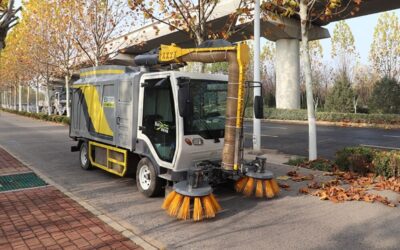

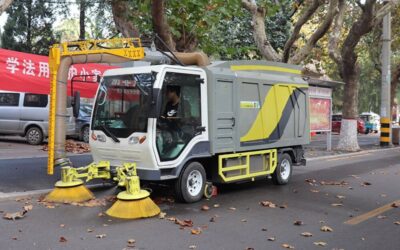

At the front, you’ll find two sweeping brushes designed to clear leaves from the ground, making it easier for the bottom suction cup to efficiently gather them.
Power System
This vehicle is entirely electric, offering economic, environmentally-friendly, and dependable operation. It utilizes a high-suction pure electric fan to collect leaves from the ground while simultaneously crushing and compressing them. This innovative design significantly enhances the efficiency of leaf collection.
Vehicle Configuration
This vehicle comes with a 4.5 cubic bin and a cutting-edge two-stage dust removal and filtration system, providing ample storage capacity and ensuring a dust-free operation.
With a combination of a front sweeping brush and a powerful suction fan, it swiftly gathers leaves, whether scattered or piled up.

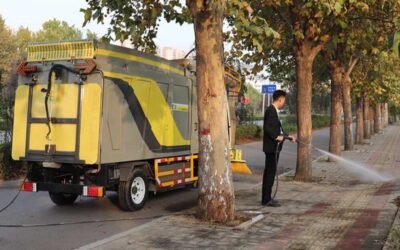

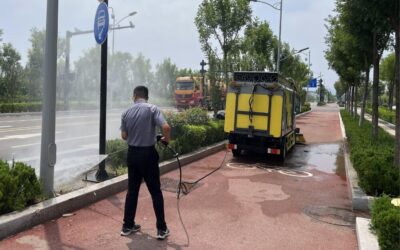

Furthermore, it’s equipped with a high-pressure washing system, enabling it to transform into a high-pressure cleaning vehicle for tasks like cleaning curbs, sidewalks, bike lanes, and trash cans during non-leaf seasons. This multi-functional capability significantly boosts the overall utility of the vehicle.
Innovative Equipment
Introducing the fourth-generation upgraded multi-functional leaf collection vehicle, a solution crafted to effectively tackle the challenges posed by copious leaves, their substantial volumes, and the difficulties associated with their collection and transportation during the concentrated leaf fall season.
These leaf collection trucks have emerged as a versatile market solution, finding application in a wide array of scenarios. They are ideally suited for leaf collection on urban arterial roads, urban and rural arterial roads, at schools and factories, in residential areas, municipal gardens, garden scenic areas, parks, and for maintaining sidewalk cleanliness, as well as for tasks such as pavement and small advertisement washing.
Technical Parameters
| Items | Units | Parameters | |||
| Vehicle Overall Parameters | Curb Weight | kg | 2535 | ||
| Gross Vehicle Weight | kg | 4035 | |||
| Payload | kg | 1500 | |||
| Dimensions (LxWxH) | mm | 5100*1440*2358 | |||
| Mini Ground Clearance | mm | 150 | |||
| Wheelbase | mm | 2700 | |||
| Battery | V/AH | 72/600 | |||
| Wheel Tread | Front | mm | 1250 | ||
| Rear | mm | 1200 | |||
| Working Parameters | Sweeping Width | m | 2100 | ||
| Sweeping Speed | km/h | 5～10 | |||
| Sweeping Capacity | ㎡/h | 20000 | |||
| Cleaning Method | Vacuum Collection + High Pressure Washing | ||||
| Water Pump | Motor power | Kw | 3 | ||
| Flow | L/min | 15 | |||
| Water pressure | MPA | 15 | |||
| Max. Trash Bin Volume | m³ | 4.5 | |||
| Max. Clean Water Tank Volume | m³ | 0.6 | |||
| Fan | Kw | 7.5 | |||
| Side Brush | Motor | w | 300 | ||
| Width | mm | 700 | |||
| Hydraulic Motor Power | Kw | 1.2 | |||
| Discharge Angle | ° | 45 | |||
| Travelling Parameters | Continuous Working Time | h | 5-6 | ||
| Max. Speed (No Load) | km/h | 35 | |||
| Max. Climbing Angle | % | 20 | |||
| Braking Distance (Full Load 20km/h) | m | ≤5.5 | |||
| Min. Turning Diameter | m | 6 | |||
| Chassis | Number of Passengers | 2 | |||
| Chassis | Manganese Steel Cold Riveted Splicing Light Truck Chassis | ||||
| Drive Motor Power | Kw | 7.5 | |||
| Power Supply | v | 72 | |||
| Controller | V/A | ||||
| Speed Control | Continuously Variable Transmission | ||||
| Battery | Type | Lithium iron phosphate battery | |||
| Volume | Ah | 600 | |||
| Charging time | Standard | h | 5-8 | ||
| Fast charge (Optional) | h | 3-4 | |||
| Tyre | 185R14C | ||||
| Braking Method | Hydraulic Drum Brake + Vacuum Pump Auxiliary Brake | ||||
| Body Parameters | Vehicle Body | Heat Metal Electrophoretic Spraying Process, the Left and Right Sides of The Cabinet Are Equipped with Side Doors | |||
| Air Conditioner | Vacuum Collection + High-Pressure Washing | ||||
| Driver Cabin | Fully Enclosed Cabin; Front Windshield Is Tempered Glass | ||||
| Seat | Waterproof Leather Sponge Seat | ||||
| Camera | All-Angle Driving Image | ||||
| Water Level Indicator | High-Pressure Washing | ||||
| Water Level Alarm | Yes | ||||
| Optional Oil-Electric Hybrid Version | Battery | Type | Tianneng Lead-Acid Maintenance-Free Battery | ||
| Volume | Ah | 200 | |||
| Engine | Brand | Briggs & Stratton Twin-Cylinder 18 Hp Engine | |||
| Power | HP | 18 | |||
| Cruising mileage | km | 80-100 | |||
| High Pressure Washing | Optional | ||||
