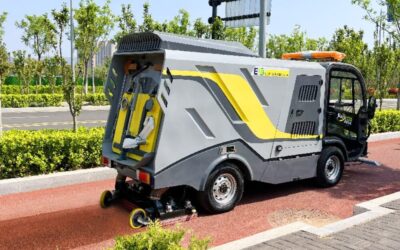

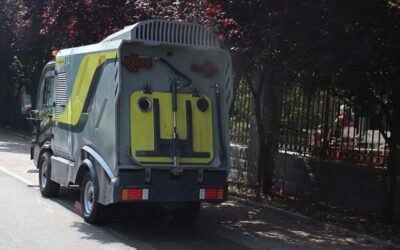

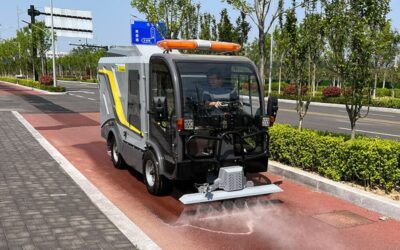

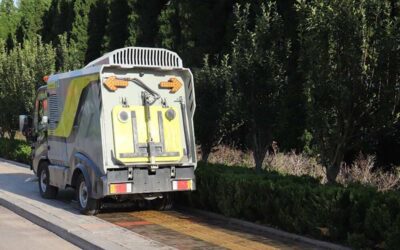

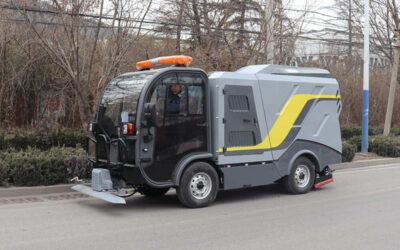

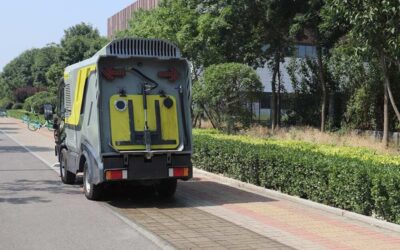

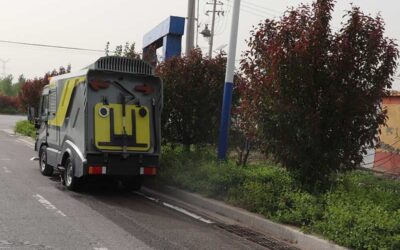

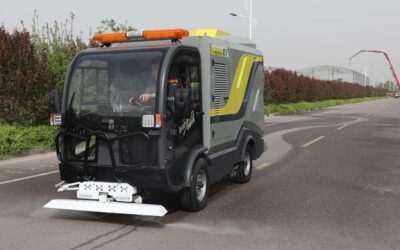

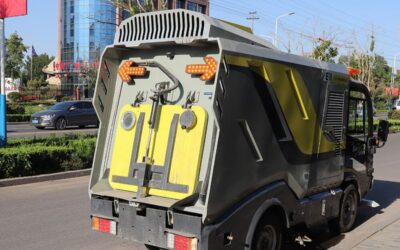

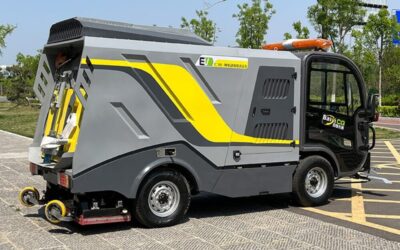

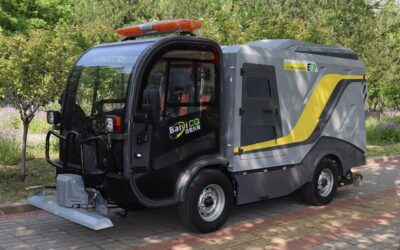

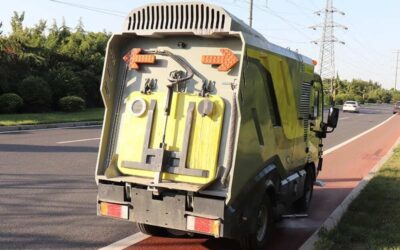

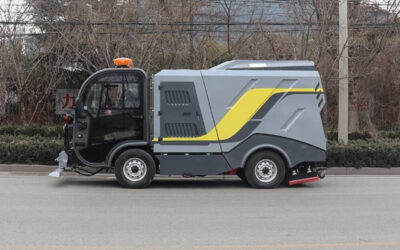

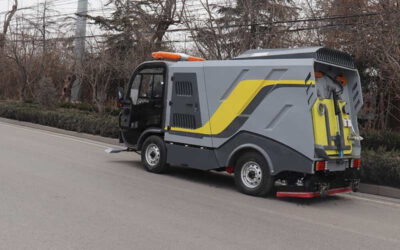

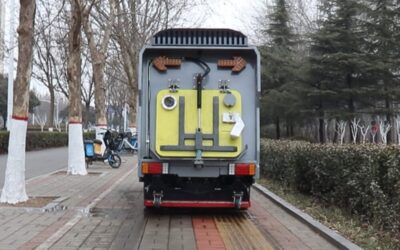

Pure Electric Deep Cleaning Vehicle BY-C30
The BY-C30 is a compact electric deep-cleaning vehicle designed for efficient sanitation tasks, featuring deep and high-pressure cleaning capabilities. Powered by a lithium iron phosphate battery, it’s small, quiet, and capable of accessing tight spaces. Its functions include super road cleaning, curb stone facade cleaning, garbage and sewage recycling, and high-pressure washing, leaving surfaces looking rejuvenated. With a 40-minute continuous operation capacity and a winter anti-freeze system, it performs well in various conditions.
The vehicle also incorporates the Baiyi Intelligent Environmental Sanitation AI System for comprehensive monitoring and seamless integration in sanitation operations. It supports independent fast charging, achieving a full charge in 2-3 hours, enabling 4-5 tanks of water worth of continuous work on a single charge.
Water Tank Capacity
1100L
Cleaning Speed
3000㎡/h
Battery Life
6-7H
Applicable Working Conditions:
Experience The Future Of Mobility With Greenland Motors.
Reach Out Today For Unparalleled Insights And Service.
Pure Electric Deep Cleaning Vehicle BY-C30
Features
Overview
The BY-C30 represents the latest advancement in compact electric deep cleaning vehicles, designed for efficient sanitation tasks that encompass both deep and high-pressure cleaning. Powered by a lithium iron phosphate battery, this vehicle boasts a small footprint and operates with minimal noise, enabling it to access and clean areas that larger vehicles cannot reach.
Its versatile capabilities include super road cleaning, curb stone facade cleaning, garbage and sewage recycling, as well as high-pressure washing. Following a deep cleaning operation, the road surface appears revitalized and almost brand new. With a water tank capacity that allows for continuous operation for up to 40 minutes, and a built-in winter anti-freeze system, the BY-C30 ensures consistent performance even in adverse conditions.
Additionally, the vehicle is equipped with the Baiyi Intelligent Environmental Sanitation AI System, enabling comprehensive monitoring throughout its operational life cycle. This system seamlessly connects people, vehicles, objects, and events in sanitation operations. Furthermore, the BY-C30 features independent fast charging, capable of reaching a full charge in just 2-3 hours, which allows it to work continuously for 4-5 tankfuls of water on a single charge.
Vehicle Chassis
The vehicle features a sturdy cold-riveted frame, ensuring safe and stable chassis operation. Additionally, it employs a specialized load-bearing asymmetric suspension system for enhanced performance.
Operating Mode
The BY-C30 represents the most recent advancement in small electric deep cleaning vehicles. This vehicle is a highly efficient sanitation solution that combines deep cleaning and high-pressure cleaning capabilities. It is powered by a lithium iron phosphate battery, making it eco-friendly and sustainable.

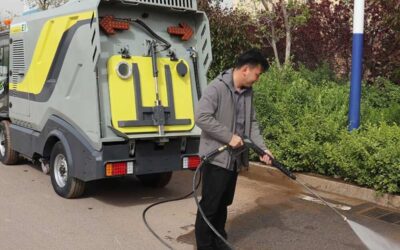

This compact vehicle operates quietly, filling a crucial role in sanitation by accessing and cleaning areas that larger deep cleaning vehicles cannot reach. Its multifunctionality includes super road cleaning, curb stone facade cleaning, garbage and sewage recycling, and high-pressure washing. Its deep cleaning leaves road surfaces looking completely rejuvenated.
Power System
The entire vehicle is fully electric, offering an economical and eco-friendly solution. It boasts an impressive cruising range of 80-100 kilometers, aligning perfectly with the national initiative to promote new energy vehicles.
Vehicle Configuration
The vehicle’s water tank has a continuous usage capacity of 40 minutes and comes with a built-in winter anti-freeze system. It seamlessly integrates people, vehicles, objects, and events in sanitation work. Additionally, the vehicle features independent fast charging, enabling a 100% charge in just 2-3 hours, allowing for uninterrupted work on a single charge for 4-5 tanks of water.
Internet Of Vehicles System
The vehicle offers the optional Baiyi Intelligent Sanitation AI system, capable of real-time monitoring of the vehicle’s operating path, duration, performance, power usage, and more.
Technical Parameters
| Items | Units | Parameters | |||
| Vehicle Overall Parameters | Curb Weight | kg | 3200 | ||
| GVW | kg | 4500 | |||
| Payload | kg | 1300 | |||
| Dimensions (LxWxH) | mm | 4500*1450*2200 | |||
| Min. Ground Clearance | mm | 180 | |||
| Wheelbase | mm | 2200 | |||
| Wheel Tread | Front | mm | 1220 | ||
| Rear | mm | 1220 | |||
| Working Parameters | Wash & Sweep Width | m | 1.1 | ||
| Wash & Sweep Speed | km/h | 5～10 | |||
| Washing Speed | km/h | 8～15 | |||
| Washing Capacity | ㎡/h | 3000-4000 | |||
| Washing Cleanliness Rate | % | ≥97 | |||
| Washing Methods | High-Pressure Washing + Vacuum Collection | ||||
| High Pressure Pump | Rated Pressure | Mpa | 25 | ||
| Water Flow rate | L/min | 30 | |||
| Max. Capacity of Garbage Bin | L | 1100 | |||
| Max. Capacity of Water Tank | L | 1400 | |||
| Fans Motor | Kw | 7.5 | |||
| Hydraulic Motor | Kw | 1.2 | |||
| Discharge Angle | ° | 45 | |||
| Discharge Height | m | 750 | |||
| Traveling Parameters | Continuous Working Time | h | 6-7 | ||
| Max. Speed (Unloaded) | km/h | 30 | |||
| Max. Climbing Angle | % | 15 | |||
| Braking Distance (Full Load 20km/h) | m | ≤5.5 | |||
| Min. Turning Diameter | m | 6 | |||
| Chassis | Number Of Passengers | 2 | |||
| Chassis | Manganese Steel Cold Riveted Splicing Light Truck Chassis | ||||
| Drive Motor Power | Kw | 7.5 | |||
| Power Supply | v | 72 | |||
| Battery | Ah | 800( Lithium iron phosphate battery ) | |||
| Charging Time | Standard | h | 6-8 | ||
| Fast charging（Optional） | h | 2-3 | |||
| Tyre | 205R14C | ||||
| Braking Method | Hydraulic Drum Brake + Vacuum Pump Braking Assist | ||||
| Vehicle Detail Configurations | Cabinet | Adopting Sheet Metal Electrophoretic Spraying Process, the Left and Right Sides of The Box Are Equipped with Side Doors | |||
| Air Conditioner | Equipped with Cold and Warm Air Conditioning, with 360 Degree Adjustment of Air Outlet Direction | ||||
| Driver Cabin | Adopting a Fully Enclosed Cabin; Front Windshield Is Made of Tempered Glass | ||||
| Camera | 360 ° Panoramic Camera with Color Cameras on Both Front, Rear, Left, and Right Sides | ||||
| Water Level Indicator | High-Pressure Pump | ||||
| Water Level Alarm | Yes | ||||
