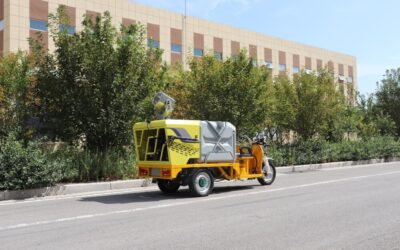

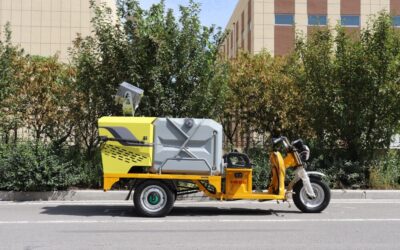

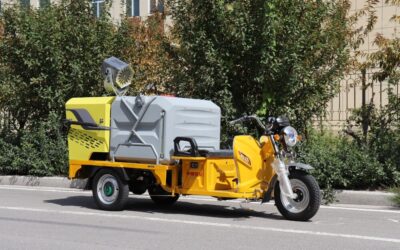

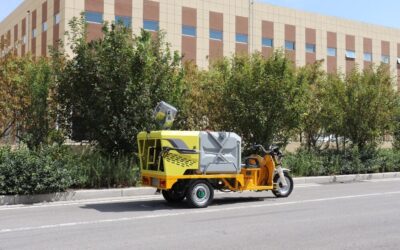

Economical High-Pressure Cleaning Vehicle BY-C5

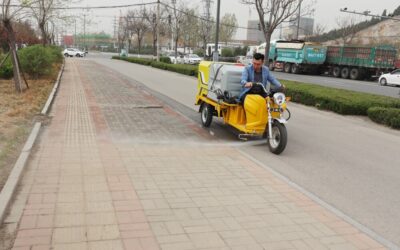

The small high-pressure cleaning vehicle, also known as the “mini high-pressure water sweeper,” is a versatile and efficient tool for cleaning urban sidewalks, side streets, and various public spaces. It can tackle multiple tasks, including cleaning advertisements, washing bins, restoring floor tiles, and more.
This compact vehicle works well in conjunction with a small road sweeper, enhancing cleaning operations. It’s easy to maneuver, lightweight, and won’t damage public infrastructure. Powered by an electric tricycle chassis, it’s user-friendly and suitable for regular sanitation workers.
Power Source
Gas Electric Hybrid
Water Tank Capacity
580L
Flushing Pressure
25MPA
Applicable Working Conditions:
Experience The Future Of Mobility With Greenland Motors.
Reach Out Today For Unparalleled Insights And Service.
Economical High-Pressure Cleaning Vehicle BY-C5
Features
Overview

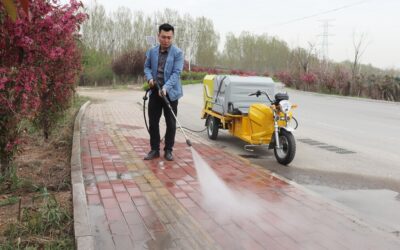

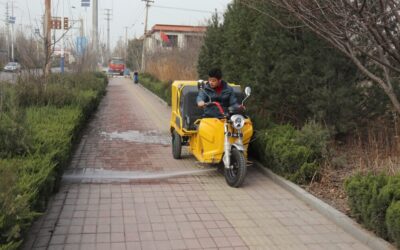

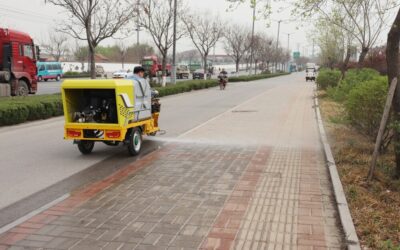

The compact and versatile high-pressure cleaning vehicle, also referred to as the “mini high-pressure water sweeper,” boasts a wide range of cleaning capabilities. Its primary purpose is the rapid cleaning and maintenance of urban sidewalks, side streets, and curbstones. This vehicle is also well-suited for tasks like cleaning small urban advertisements, washing garbage bins and trash cans, eliminating ground-level dirt, restoring floor tiles to their original luster, cleaning bus stop signs, and flushing public toilets, among other applications.
When used in tandem with a small road sweeper, it significantly enhances the efficiency of sidewalk and side street cleaning operations. Despite its small size and lightweight design, it exhibits excellent maneuverability and won’t harm sidewalk tiles, manhole covers, or other public infrastructure. Equipped with a high-quality electric tricycle chassis, it’s user-friendly and can be operated by regular sanitation workers.
Vehicle Chassis

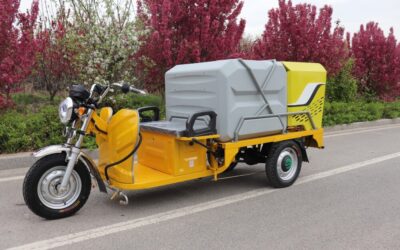

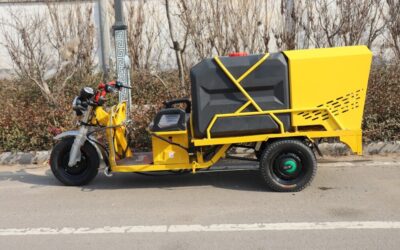

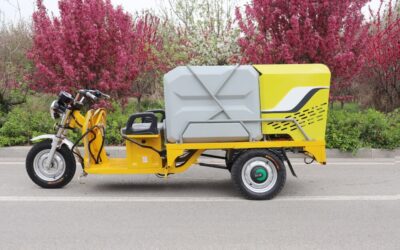

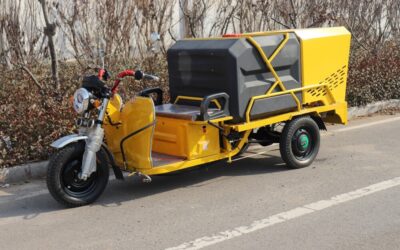

It utilizes a high-quality electric tricycle chassis with a robust integrated curved beam frame structure. This design ensures exceptional stability and durability, making it suitable for navigating a wide range of challenging road surfaces.
Operating Mode

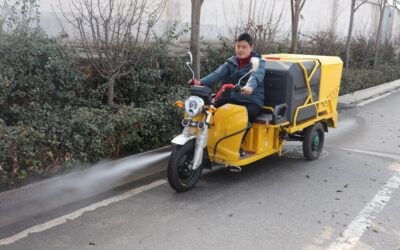

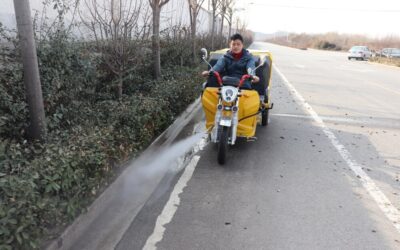

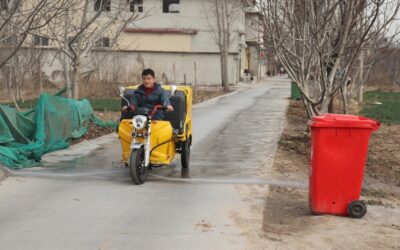

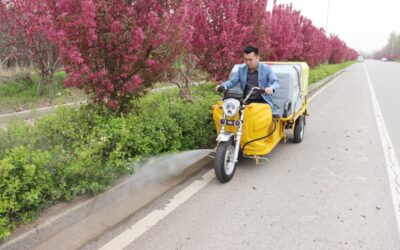

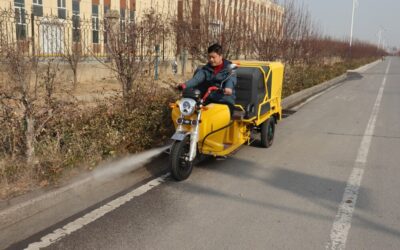

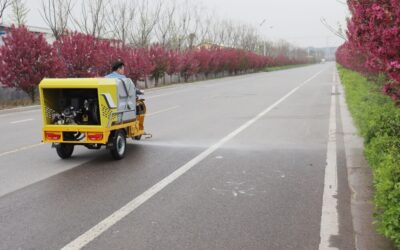

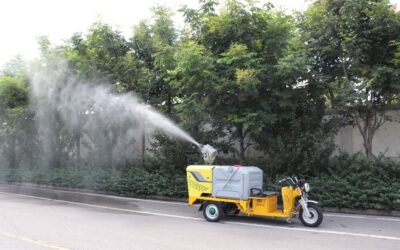

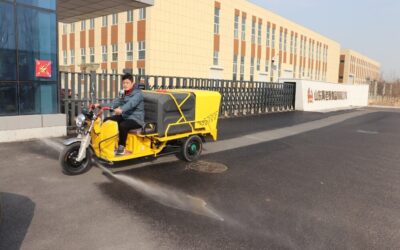

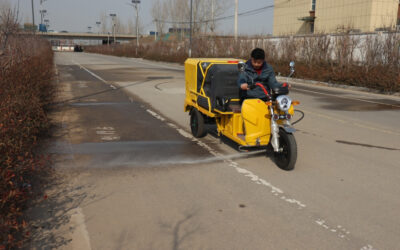

The vehicle comes with left and right side flushing nozzles, both of which offer adjustable flushing directions. These nozzles are controlled by a robust hydraulic valve for increased durability.

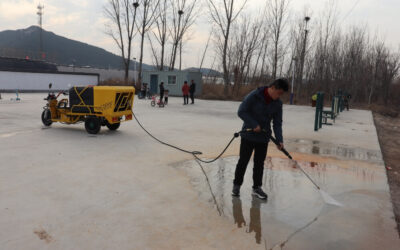

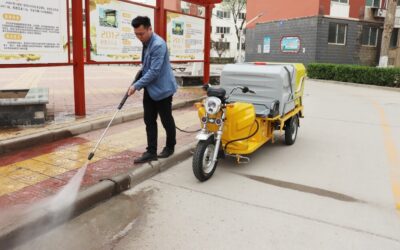

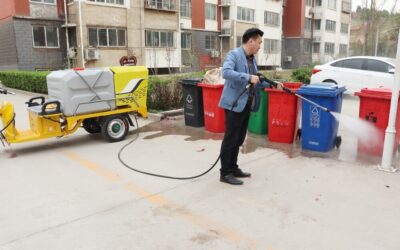

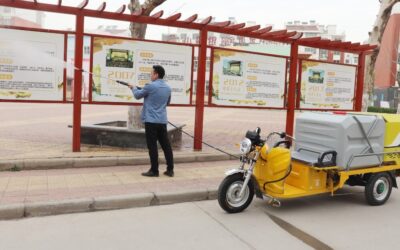

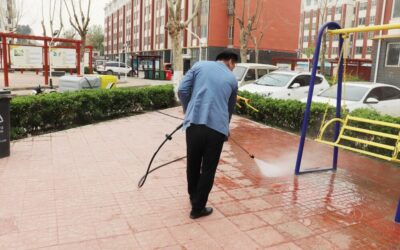

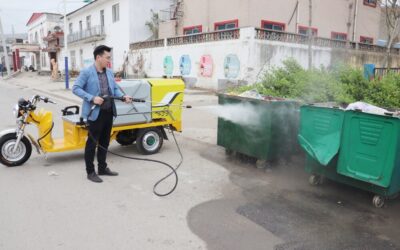

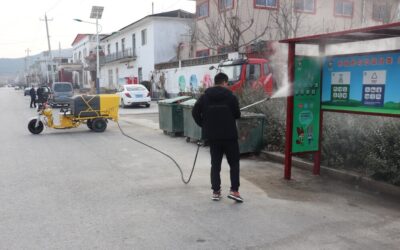

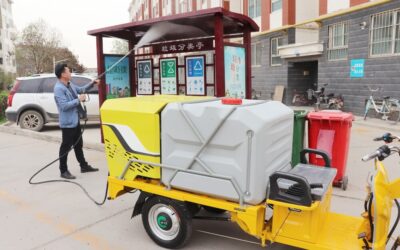

Additionally, it includes a handheld high-pressure spray gun with a rotating nozzle, perfect for cleaning small advertisements, trash cans, and ground litter.
Furthermore, the vehicle is equipped with barrel accessories that feature a convenient 15-meter water pipe automatic retractor, simplifying the retraction and extension of high-pressure hoses.
Power System
It is furnished with renowned brand dry maintenance-free batteries, such as Chaowei or Tianneng, known for their extended battery lifespan.
Vehicle Configuration

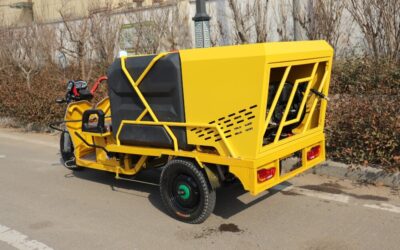

It features an integrated rotomolded 580L water tank renowned for its leak resistance, corrosion resistance, and durability against aging. Additionally, the water tank is equipped with dedicated interfaces for cleaning and sewage discharge, along with an overflow interface for when the tank reaches capacity. A water level observation window on the tank’s side allows for real-time monitoring of water levels.

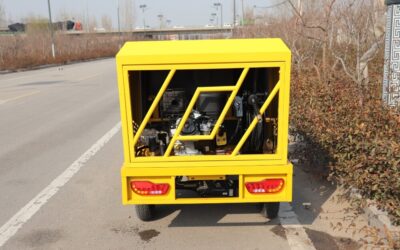

Furthermore, it is powered by a top-notch gasoline engine featuring an original electric start and an oil shortage protection device.
Moreover, it boasts high-quality, reliable brand high-pressure pumps for consistent performance.
Optional
This vehicle offers optional accessories such as a hand-push flusher and a hand-push disc.

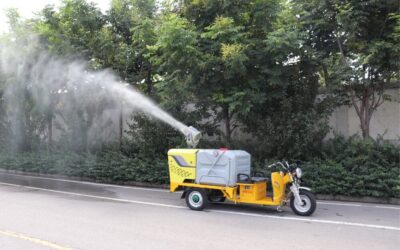

Additionally, it can be equipped with an optional rear dust suppression system. Moreover, there is an option to include a cab carport. Furthermore, it offers the option of adding a fog cannon.
Technical Parameters
| Items | Units | Parameters | |||
| Vehicle Overall Parameters | Payload | kg | 575 | ||
| Dimensions (LxWxH) | mm | 3050*1020*1300 | |||
| Min. Ground Clearance | mm | 150 | |||
| Wheelbase | mm | 2100 | |||
| Wheel Tread | Rear | mm | 900 | ||
| Working Parameters | Washing Width | m | 6-8 | ||
| Speed ​​of Work | km/h | 5～10 | |||
| Washing Efficiency | ㎡/h | 20000 | |||
| Max. Washing Pressure | MPA | 18 | |||
| Working Sound | dB(A) | <68 | |||
| Washing Methods | High-Pressure Pump | Left and Right Washing, Front Washing, Side Washing, Rear Dust Suppression, High Pressure Hand Gun | |||
| High-Pressure pump | Brand | Left and Right Washing, Front Washing, Side Washing, Rear Dust Suppression, High-Pressure Hand Gun | |||
| Flow | L/min | 15 | |||
| Engine | Brand | US Briggs & Stratton Engine | |||
| Power | HP | 13.5 | |||
| Water Tank | Material | Integrated Rotational Molding Water Tank | |||
| Volume | m³ | 580 | |||
| Walking Motor Power | Kw | 1.2 | |||
| Hose Roller | m | 15 | |||
| Traveling Parameters | Working Distance | Km | 50-60 | ||
| Max. Speed (Empty Load) | km/h | 30 | |||
| Max. Climbing Angle | % | 15 | |||
| Braking Distance (Full Load 20km/h) | m | ≤5.5 | |||
| Min. Turning Diameter | m | 6 | |||
| Chassis | Number of Passengers | 1 | |||
| Chassis | Wuzheng | ||||
| Controller | V/A | ||||
| Speed Control | Continuously Variable Transmission | ||||
| Power Supply | v | 60 | |||
| Battery | Brand | Tianneng Maintenance-Free Lead-Acid Battery | |||
| Volume | Ah | 58A | |||
| Charging Time | Standard | h | 6-8 | ||
| Tyre Specification | 4.00-12 | ||||
| Braking Method | Drum brake | ||||
| Vehicle Detail Configurations | Cabinet | Sheet Metal Electrophoretic Spraying Method | |||
| Driver Cabin Cover | Optional | ||||
| Seat | Waterproof Leather Sponge Seat | ||||
| Water Level Indicator | Standard | ||||
| Battery Type | Battery | Type | Lithium Iron Phosphate Battery | ||
| Volume | Ah | 150AH | |||
| Driving Motor | Kw | 1.2 | |||
| Working Motor | KW | 3 | |||
| Working Time | h | 3-5 | |||
| Charging Time | h | 6-8 | |||
| Washing Pressure | MPA | 18 | |||
