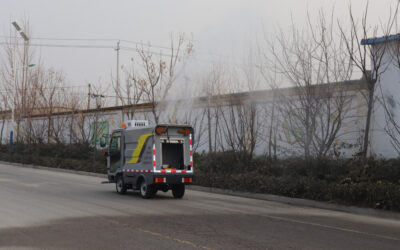

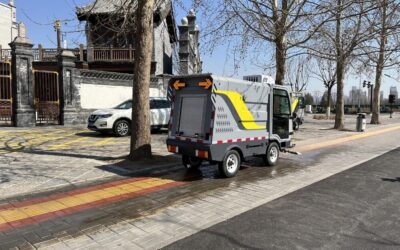

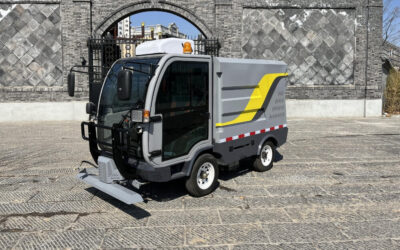

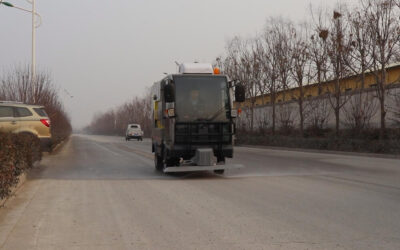

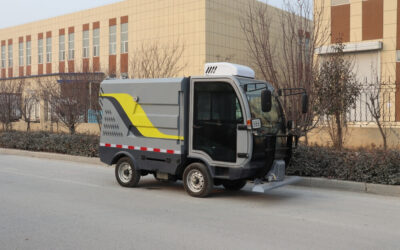

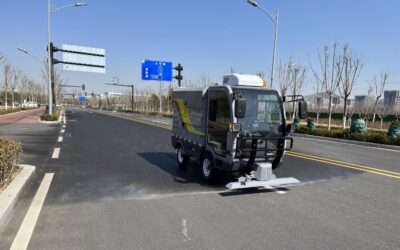

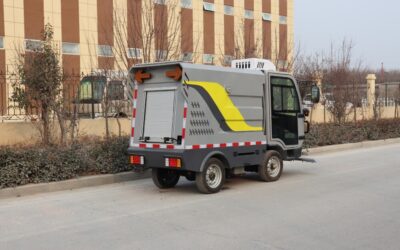

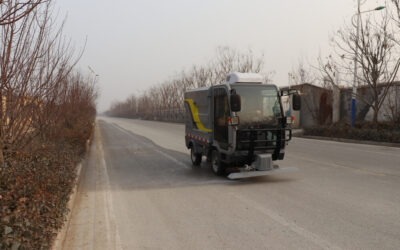

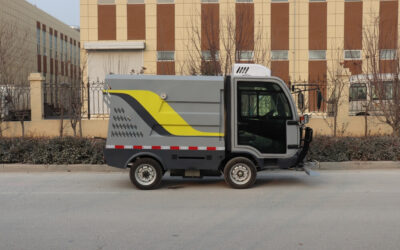

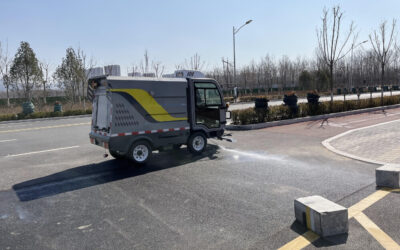

Four-Wheel Multi-Functional High-Pressure Cleaning Vehicle BY-C12

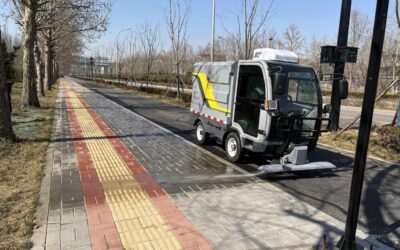

The multi-functional four-wheel high-pressure cleaning vehicle, often called the “compact high-pressure water sweeper,” boasts versatile cleaning capabilities. It is primarily designed to quickly clean urban sidewalks, secondary roads, and curbside stones.
Additionally, it aids in the cleaning of small urban billboards, sanitizing fruit containers and garbage bins, removing ground stains, rejuvenating the original hue of floor tiles, cleaning bus stop signs, and washing public restrooms.

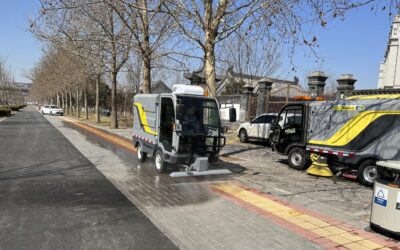

When paired with a mini street sweeper, this vehicle efficiently cleans sidewalks and auxiliary roads.
Power Source
Pure Electric
Tank Capacity
1000L
Flushing Pressure
25MPA
Applicable Working Conditions:
Experience The Future Of Mobility With Greenland Motors.
Reach Out Today For Unparalleled Insights And Service.
Four-Wheel Multi-Functional High-Pressure Cleaning Vehicle BY-C12
Features
Vehicle Chassis

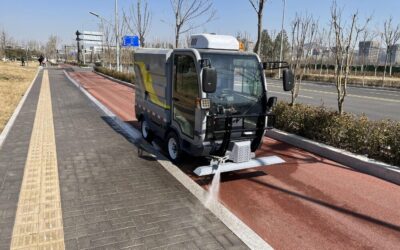

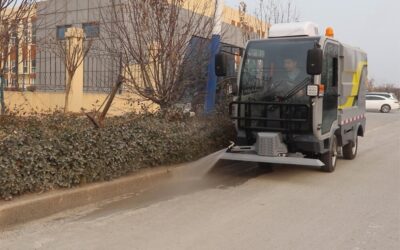

The vehicle comes outfitted with a versatile high-pressure flushing system with multiple modes. This includes flushing from both the left and right sides, row flushing, and a manual high-pressure spray gun option. The left and right side flushing nozzles are adjustable, allowing for direction changes on the fly. Moreover, the primary valve is hydraulic, ensuring longevity and durability.

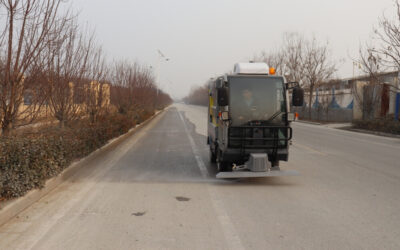

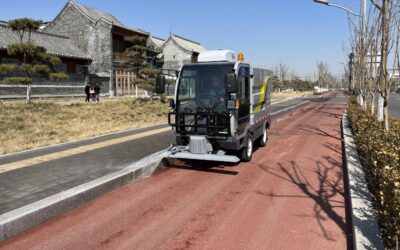

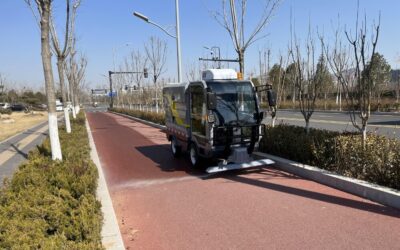

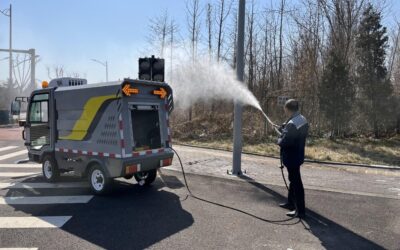

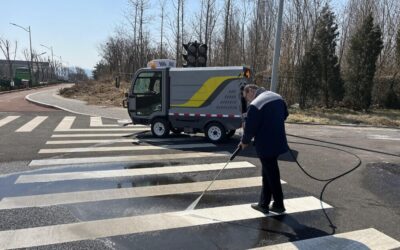

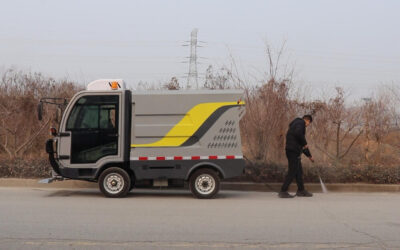

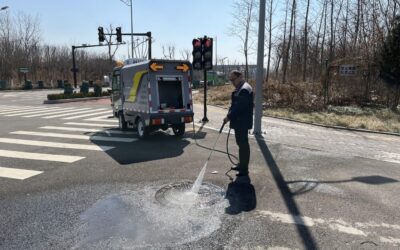

The vehicle has a hand-held high-pressure spray gun and a spin nozzle for precise cleaning tasks such as washing smaller advertisements, trash bins, and ground litter. The vehicle’s rear also features a dust suppression spray, while the front boasts a 7-hole nozzle flushing mechanism.
Operating Mode
The vehicle’s chassis utilizes a cold riveting splicing method, seamlessly connecting steel pipe beams. This ensures excellent load-bearing capabilities, dependable strength, and resistance to torsion. Moreover, its spare parts are designed for universal interchangeability. For safety and reliability, it features a four-wheel hydraulic brake system complemented by a vacuum booster.
Power System
The vehicle comes fitted with renowned brand batteries, either Chaowei or Tianneng, which can be maintenance-free or lithium-based. These batteries offer robust and extended lifespans.
Vehicle Configuration
The vehicle features an integrated roto moulding water tank with a capacity of 1000 liters. This tank is designed with a unique interface for both cleaning and sewage discharge. Additionally, a water level observation window is positioned at the front of the tank, facilitating easy and immediate water level monitoring.
The vehicle’s body is crafted using a sheet metal spraying technique. It undergoes a comprehensive spray treatment after undergoing a pickling and phosphating process. Nested within this structure is those above integrated rotomoulding water tank.
Technical Parameters
| Items | Units | Parameters | |||
| Vehicle Overall Parameters | Curb Weight | kg | 1425 | ||
| Gross Vehicle Weight | kg | 2500 | |||
| Payload | kg | 1075 | |||
| Dimensions (l x w x h) | mm | 3560*1290*2180 | |||
| Min. Ground Clearance | mm | 150 | |||
| Wheelbase | mm | 1600 | |||
| Wheel tread | Front | mm | 1050 | ||
| Rear | mm | 1050 | |||
| Working Parameters | Washing Width | m | 6-8 | ||
| Speed of Work | km/h | 5～10 | |||
| Washing Efficiency | ㎡/h | 20000 | |||
| Max. Washing Pressure | Mpa | 17 | |||
| Dust Density During Operation | mg/m³ | 2.5 | |||
| Working Sound | dB(A) | <68 | |||
| Washing Methods | Italy Ar High-Pressure Pump | Left And Right Washing, Front Washing, Side Washing, Rear Dust Suppression, High Pressure Hand Gun | |||
| High-Pressure Pump | Brand | Left And Right Washing, Front Washing, Side Washing, Rear Dust Suppression, High-Pressure Hand Gun | |||
| Flow | L/min | 15 | |||
| Water Pump Motor | Brand | Liechima | |||
| Power | Kw | 5.5 | |||
| Water Tank | Material | Integrated Rotational Molding Water Tank | |||
| Volume | L | 1000 | |||
| Hose Roller | m | 15 | |||
| Traveling Parameters | Working Distance | Km | ≥100 | ||
| Max. Speed (Empty Load) | km/h | 25 | |||
| Max. Climbing Angle | % | 15 | |||
| Braking Distance (Full Load 20km/h) | m | ≤5.5 | |||
| Min. Turning Diameter | m | 6 | |||
| Chassis | Number Of Passengers | 1 | |||
| Drive Motor Power | Kw | 6.5 | |||
| Speed Control | Continuously Variable Transmission | ||||
| Power Supply | v | 72 | |||
| Battery | Brand | Tianneng Maintenance-Free Lead-Acid Battery | |||
| Volume | Ah/v | 300/72 | |||
| Charging Time | Standard configuration | h | ≤8 | ||
| Fast charging（Optional） | h | 3-4 | |||
| Tyre | 205R14C | ||||
| Braking Method | Hydraulic Drum Brake + Vacuum Pump Braking Assist | ||||
| Vehicle Detail Configurations | Cabinet | Adopting A Fully Enclosed Cabin; Front Windshield Is Made Of Tempered Glass | |||
| Air Conditioner | Equipped With Cold And Warm Air Conditioning, With 360 Degree Adjustment Of Air Outlet Direction | ||||
| Driver Cabin | Adopting A Fully Enclosed Cabin, Front Windshield Is Made Of Tempered Glass | ||||
| Seat | Waterproof Leather Sponge Seat | ||||
| Camera | High-Definition Reverse Image | ||||
| Water Level Indicator | yes | ||||
| Water Level Alarm | yes | ||||
| Motor | Battery | Type | Lead Acid | ||
| Volume | Ah | 150AH（Capacity Can Be Increased According To Requirements） | |||
| Working Motor | HP | 13.5 | |||
| Drive Motor | KW | 6.5 | |||
| Working Time | h | 5-6 | |||
| Charging Time | h | High-definition reverse image | |||
| Max Washing Pressure | MPA | 25 | |||
