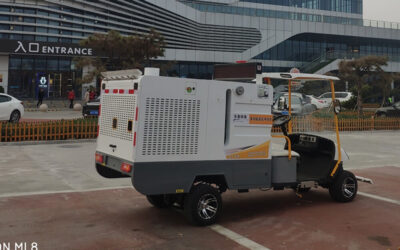

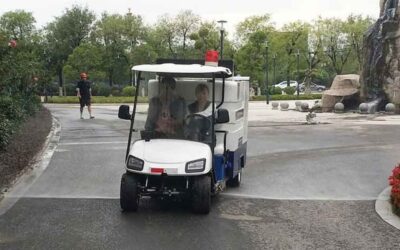

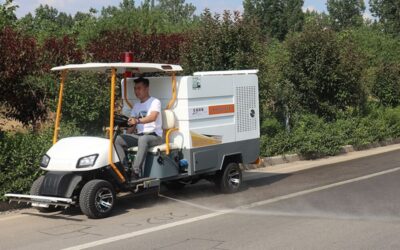

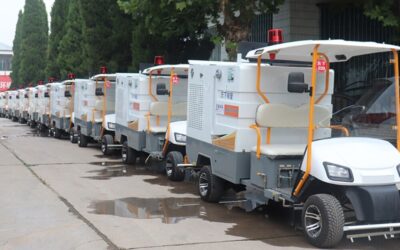

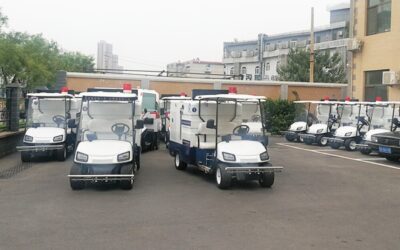

Four-Wheel Multi-Functional High-pressure Cleaning Vehicle BY-C10

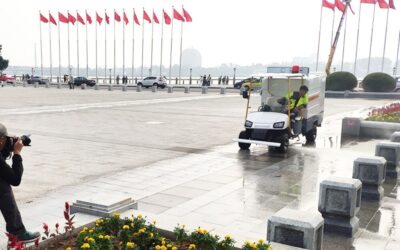

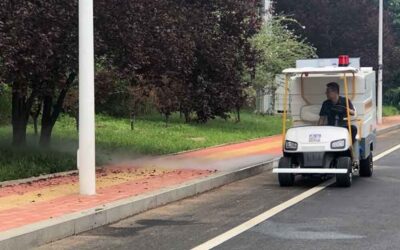

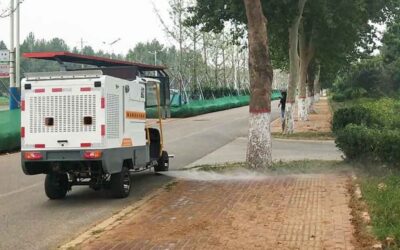

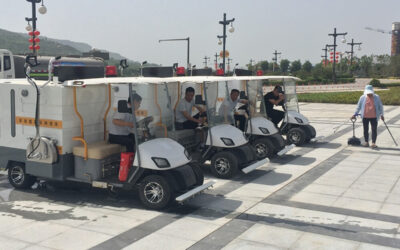

The compact and versatile high-pressure cleaning vehicle, known as the “mini high-pressure water sweeper,” is ideal for efficiently cleaning city sidewalks, secondary roads, and kerbstones. It can also remove small urban advertisements, clean trash bins, and garbage cans, eliminate ground stains, restore the original color of floor tiles, clean bus stop boards, and flush public restrooms.
When paired with a small street sweeper, it enhances the efficiency of cleaning sidewalks and secondary roads. Its compact design and lightweight ensure it navigates smoothly without damaging public facilities like sidewalk tiles or manhole covers. It fits both day and nighttime use with operational alarm systems and night-reflective stripes.
Its distinctive “water level alarm system” elevates the safety of its operations. Built on a high-grade electric four-wheeled chassis, it’s user-friendly and can be easily handled by regular sanitation workers.
BY-C10 Power Source
Gasoline Electric Hybrid
Tank Capacity
1000L
Flushing Pressure
25MPA
Applicable Working Conditions:
Experience The Future Of Mobility With Greenland Motors.
Reach Out Today For Unparalleled Insights And Service.
Four-Wheel Multi-Functional High-pressure Cleaning Vehicle BY-C10
Features

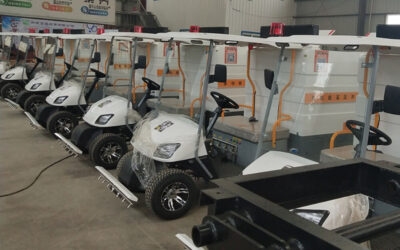

Vehicle Chassis
- Built on a premium electric four-wheel chassis, the vehicle uses an oil brake system combined with a parking brake device to ensure superior braking performance.
- The seating is designed with an expanded iron-sheet press, offering both an aesthetically pleasing shape and robust durability.
- The seat itself is padded with a vibrant sponge, lending a modern and stylish appearance. This design not only complements the overall proportions of the vehicle but also provides comfortable seating, minimizing fatigue from extended use.
Operating Mode

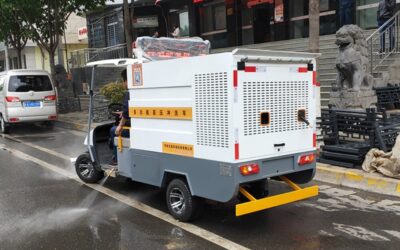

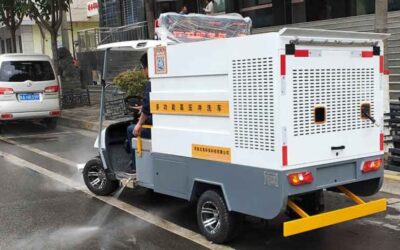

- The vehicle boasts a versatile high-pressure washing system, featuring multiple flushing options which include left and right side flushing, exhaust flushing, and handheld high-pressure gun flushing.

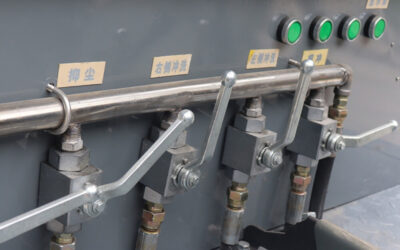

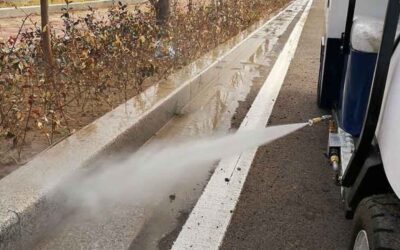

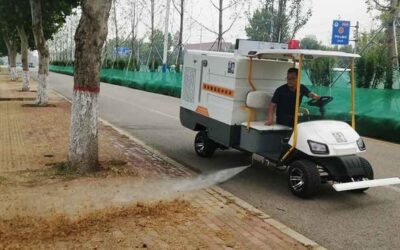

- It comes with adjustable nozzles on both the left and right sides, allowing for flexible flushing directions. The main valve, being hydraulic, ensures longevity and durability.

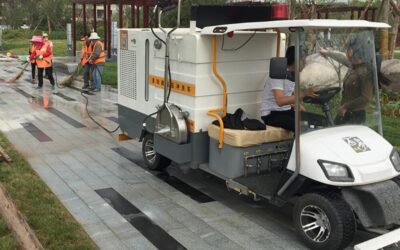

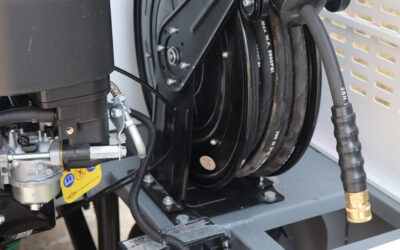

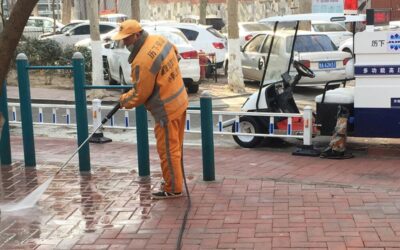

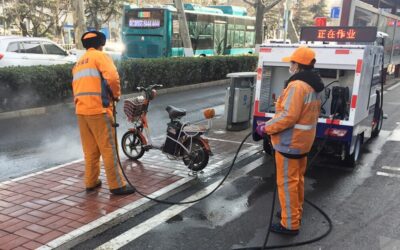

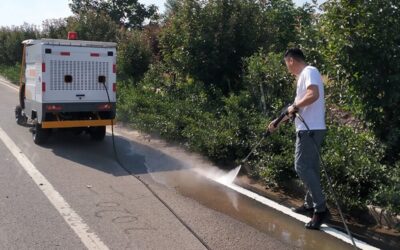

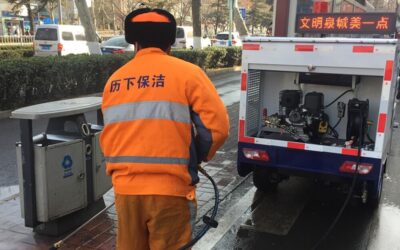

- Additionally, there’s a handheld high-pressure spray gun complete with a rotating nozzle. This is particularly handy for cleaning small advertisements, trash bins, and ground debris.

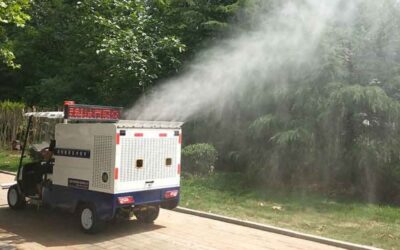

- Optionally, the vehicle’s rear can be outfitted with a dust suppression spray feature, utilizing a 7-hole nozzle mechanism directed forward.
Power System

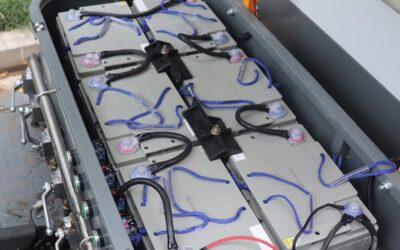

- The vehicle comes fitted with a reputable brand’s 150AH dry-type maintenance-free battery, either Chaowei or Tianneng, ensuring enhanced battery longevity.
Vehicle Configuration

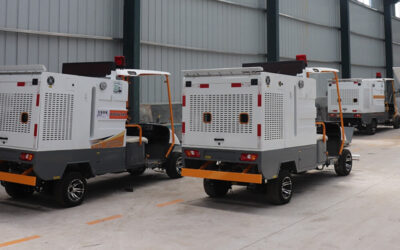

- The vehicle features a one-piece rotomolded water tank designed with a 1000-liter capacity. This tank boasts attributes like leak resistance, corrosion resistance, and anti-aging properties.
- This tank is designed with dedicated ports for cleaning, sewage discharge, and an overflow mechanism for when it’s full. Conveniently, a water level observation window is incorporated on its side for real-time water content monitoring.

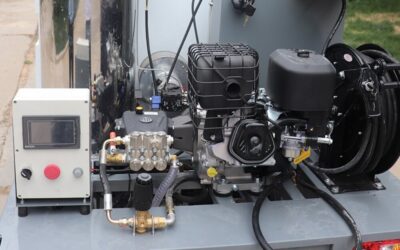

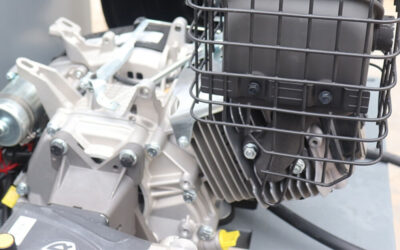

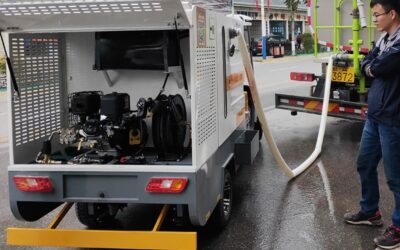

- It’s powered by an imported American Periton gasoline engine, boasting an authentic electric start and an oil shortage protection feature.

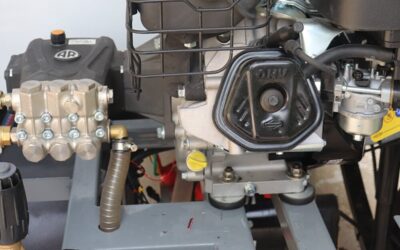

- Additionally, it harnesses the power of an imported Italian AR high-pressure water pump, which can generate pressures up to 280 kg, ensuring formidable flushing capabilities.
- The external body shell is crafted from sheet metal that undergoes a plastic spraying process. This procedure is applied post a thorough pickling and phosphating treatment, enhancing its corrosion resistance, and giving it a more polished, sophisticated look.
Optional
- The vehicle offers a choice between a lithium battery or a lead-acid battery for its power source.
- Its rear-engine provides options for either pure electric or fuel-based power.
- Additionally, there’s an optional feature to equip the vehicle with a rear dust suppression system.
Technical Parameters
| Project Name | Pure Electric Version BY-C10-L | Hybrid Version BY-C10 | Walking Electric/High-Pressure Fuel |
| Power Source | Pure Electric | Travel Electric/Heating Fuel | Travel Electric/Heating Fuel |
| Greatest Pressure | 20MPA | 25MPA | 25MPA |
| Heating Method | / | / | Diesel Heating |
| Maximum Temperature | / | / | 80℃ |
| Flushing Method | Left and Right Hedging/Front Row Flushing/Hand-Held High-Pressure Gun Flushing (Optional Rear Dust Suppression) | ||
| Water Tank Capacity | 1000L | ||
| Pump Flow | 18L/MIN | ||
| Vehicle Size | 3900*1200*2000mm | ||
