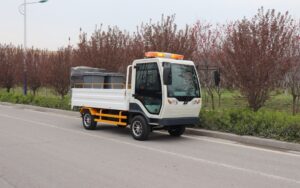

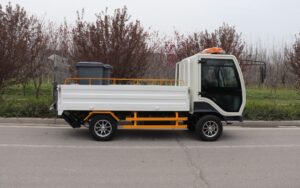

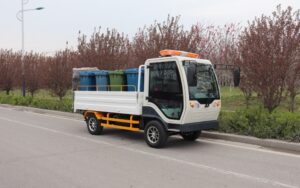

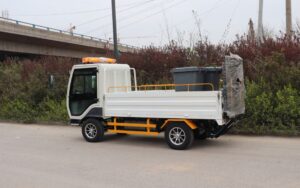

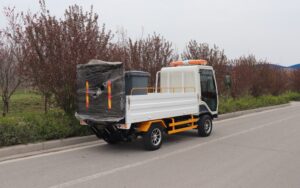

Eight-barrel Garbage Truck BY-L8
This battery-powered vehicle is designed for collecting and transporting trash cans. It is both cost-effective and environmentally friendly, boasting an appealing design. With the capability to hold eight standard 240-liter trash cans and a hydraulic tailgate for easy transfer, it aligns with urban waste collection practices.
This vehicle is versatile and widely used in central cities, residential areas, hotels, canteens, hospitals, and other locations for the efficient management of various types of barrelled garbage.
Power Source
Pure Electric
Trash Bin Capacity
8 Trash Cans
Battery Life
≥100KM
Applicable Working Conditions:
Experience The Future Of Mobility With Greenland Motors.
Reach Out Today For Unparalleled Insights And Service.
Eight-barrel Garbage Truck BY-L8
Features
Overview
This innovative vehicle relies entirely on battery power, offering a cost-effective, eco-friendly, and aesthetically pleasing solution. Its primary purpose is to facilitate the collection of trash cans, aligning seamlessly with urban waste management practices. With the capacity to accommodate eight standard 240-liter trash cans, it conforms to the prevalent method of replacing city trash containers. Additionally, it features a hydraulic tailgate, simplifying the transfer of trash cans.
This vehicle finds extensive application in the efficient collection and transportation of various types of barrelled waste in urban centers, residential neighborhoods, hotels, dining facilities, hospitals, and more.
Vehicle Chassis
The chassis employs robust No. 12 channel steel for its primary longitudinal beam, seamlessly connected with steel pipe cross beams. This construction provides exceptional load-bearing capabilities, ensuring dependable strength and torsional resistance. The modular design enhances versatility, allowing for the universal interchangeability of spare parts. For safety and reliability, the vehicle is equipped with four-wheel hydraulic brakes with vacuum assist.
Operating Mode
The battery-powered eight-bucket garbage removal truck combines economic efficiency, environmental friendliness, and an aesthetically pleasing design. Its primary purpose is the collection of trash cans, with the capacity to transport eight standard 240L bins, aligning perfectly with urban waste collection practices. Additionally, it features a hydraulic tailgate for effortless trash can transfer.
Power System
This electric vehicle is exclusively powered by electricity, delivering economic efficiency and environmental friendliness, and it boasts an approximate 100-kilometer cruising range, aligning with the national agenda for promoting new energy vehicles.
As for its steering and braking system, it features an EPS steering assist device and an EBS brake vacuum assist system, ensuring agile steering and dependable braking performance.

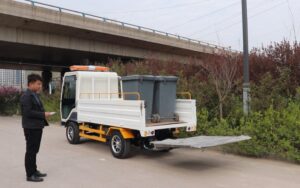

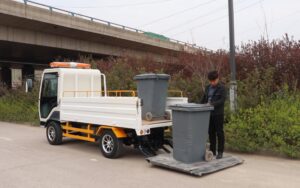

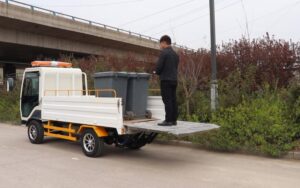

Furthermore, it comes equipped with a hydraulic tailgate, simplifying the process of loading and unloading trash cans.
Vehicle Configuration
The carriage is constructed from 201 stainless steel sheet metal, while the bottom plate is crafted from premium patterned steel plate material. This choice not only enhances the overall aesthetics but also boosts practicality. The patterned steel plate increases friction between the trash can and the bottom, providing excellent anti-slip properties.
For improved nighttime safety, the vehicle incorporates high-intensity LED headlights.
In terms of tires, it utilizes 8-layer radial high-load vacuum tires, renowned for their durability and extended lifespan due to their wear-resistant nature.
Operating Environment
The vehicle’s cabin features an EPS steering assist device and an EBS brake vacuum assist system, guaranteeing both nimble steering and dependable braking performance.
The driving experience in this vehicle is characterized by comfort, user-friendliness, and a design that doesn’t overtax the driver.
Additionally, it offers the convenience of a fan and the option for air conditioning to enhance overall driving comfort.
Technical Parameters
| Items | Units | Parameters | ||||
| Vehicle Overall Parameters | Curb Weight | kg | 1400 | |||
| Gross Vehicle Weight | kg | 3500 | ||||
| Payload | kg | 1600 | ||||
| Dimensions (l x w x h) | mm | 3450*1400*2000 | ||||
| Wheelbase | mm | 2100 | ||||
| Wheel Tread | Front | mm | 1250 | |||
| Rear | mm | 1250 | ||||
| Min. Ground clearance | mm | 200 | ||||
| Working Parameters | Loading Cab | Material | Double-Sided Anti-Corrosion | |||
| Volume | Trash Bin 240L | 8 | ||||
| Loading Trash Bin Capacity | L | 120/240/660 | ||||
| Loading Time | s | 30 | ||||
| Unloading Time | s | 30 | ||||
| Traveling Parameters | Cruise Range | km | ≥100 | |||
| Max. Speed (Unloaded) | km/h | ≤30 | ||||
| Max. Climbing Angle | % | 15 | ||||
| Braking Distance | m | ≤5 | ||||
| Min. Turning Diameter | m | 5.5 | ||||
| Chassis | Min. turning diameter | People | 2 | |||
| Chassis | Manganese Steel Cold Riveted Splicing Light Truck Chassis | |||||
| Drive Motor Power | Kw | 7.5 | ||||
| Power Supply | v | 72 | ||||
| Controller | V/A | 72/400 | ||||
| Speed Control | Continuously Variable Transmission | |||||
| Battery | Type | Tianneng Lead-Acid Maintenance Free Battery | ||||
| Volume | V/Ah | 72/200（Optional With Larger Battery ） | ||||
| Charging Time | h | 6-8 | ||||
| Front/Rear Axle | 5-Hole Fully Floating Load Axle | |||||
| Tyre | 185R14C | |||||
| Braking Method | Hydraulic Drum brake + Vacuum pump braking assist | |||||
| Loading Cab Parameters | Loading Cab | Adopting Sheet Metal Electrophoretic Spraying Process, the Left and Right Sides of The Box Are Equipped with Side Doors | ||||
| Air Conditioner (Optional） | Equipped with Cold and Warm Air Conditioning, With 360 Degree Adjustment of Air Outlet Direction | |||||
| Driver Cabin | Adopting a Fully Enclosed Cabin; Front Windshield Is Made of Tempered Glass | |||||
| Seat | Waterproof Leather Sponge Seat | |||||
| Camera | Color Camera of Reverse Image | |||||
| Optional | Battery | Type | Lithium Battery | |||
| Volume | V/Ah | 72/280（Optional With Larger Battery ） | ||||
| Charging Time | Standard | h | 6-8 | |||
| Fast Charging（Optional） | h | 3-4 | ||||
